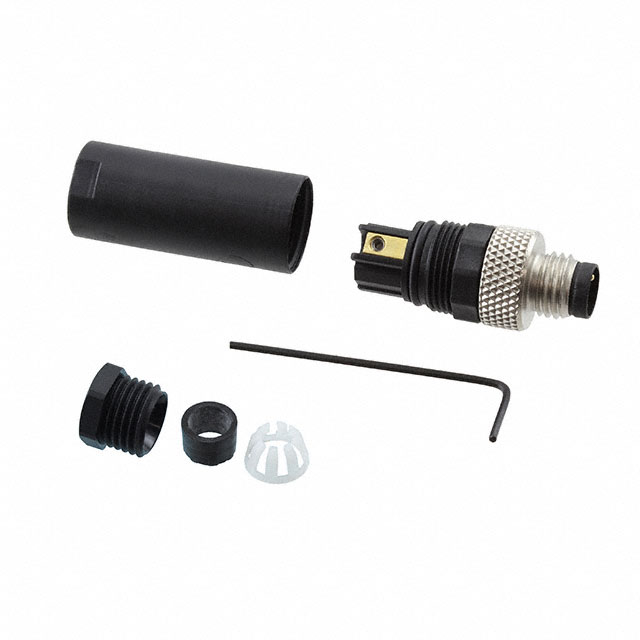

RSMCK 3

Active

LUMBERG AUTOMATION

SENSOR CONNECTOR, M8, PLUG, 3 CONTACTS, SOLDER PIN, STRAIGHT CABLE MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

RSMCK 3

Active

LUMBERG AUTOMATION

SENSOR CONNECTOR, M8, PLUG, 3 CONTACTS, SOLDER PIN, STRAIGHT CABLE MOUNT

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RSMCK 3

Applications	Industrial
Backshell Material, Plating	Polyamide (PA), Nylon
Color	Black, Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	31.5 µin
Contact Finish Thickness - Mating	0.8 µm
Contact Material	Copper Zinc
Features	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic Polyurethane (TPU)
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Copper Zinc
Shell Size - Insert	M8-3
Termination	Screw
Voltage Rating	63 V

RSMCK Series

Part	Ingress Protection	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Shell Size - Insert	Contact Material	Shell Finish	Applications	Insert Material	Operating Temperature [Max]	Operating Temperature [Min]	Backshell Material, Plating	Voltage Rating	Color	Features	Number of Positions	Mounting Type	Termination	Connector Type	Primary Material	Shell Material
LUMBERG AUTOMATION RSMCK 4	IP67 - Dust Tight Waterproof	31.5 µin	0.8 µm	Gold	M8-4	Copper Zinc	Nickel	Industrial	Thermoplastic Polyurethane (TPU)	85 °C	-40 °C	Nylon Polyamide (PA)	36 VDC	Black Silver	Backshell	4	Free Hanging (In-Line)	Screw	Male Pins Plug	Metal	Copper Zinc
LUMBERG AUTOMATION RSMCK 3	IP67 - Dust Tight Waterproof	31.5 µin	0.8 µm	Gold	M8-3	Copper Zinc	Nickel	Industrial	Thermoplastic Polyurethane (TPU)	85 °C	-40 °C	Nylon Polyamide (PA)	63 V	Black Silver	Backshell		Free Hanging (In-Line)	Screw	Male Pins Plug	Metal	Copper Zinc

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 22.75
		10	$ 19.92
		25	$ 19.06
		50	$ 18.44
		100	$ 17.83
		250	$ 16.84
		500	$ 16.35
Newark	Each	1	$ 22.96
		5	$ 19.59

Description

General part information

RSMCK Series

The RSMCK 3 is a M8 male Pico Field Attachable Connector with PA housing/molded body, self-extinguishing TPU insert, 3-pole CuZn/pre-nickel plated and 0.8 microns gold-plated contact comes with threaded joint, CuZn/nickel-plated receptacle shell and FKM O-ring. Suitable for use with sensors and actuators.
