1-2112891-1

Active

TE Connectivity Raychem Cable Protection

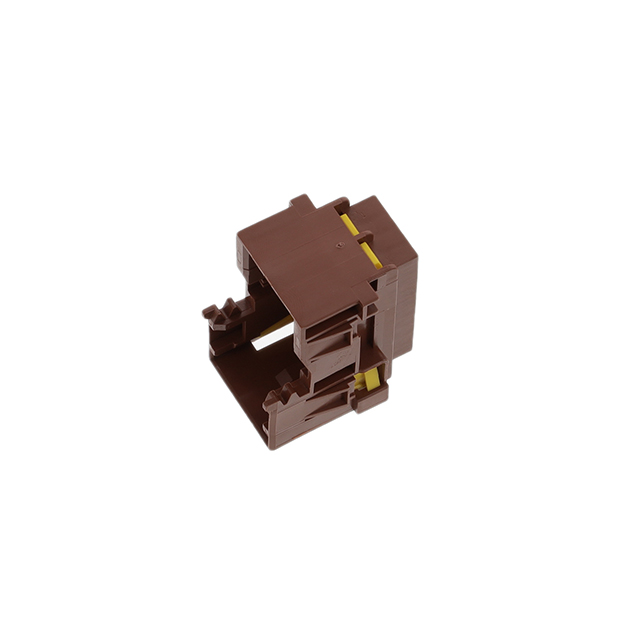

AUTOMOTIVE CONN HOUSING, TAB, 36P, 10A ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1-2112891-1

Active

TE Connectivity Raychem Cable Protection

AUTOMOTIVE CONN HOUSING, TAB, 36P, 10A ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1-2112891-1

Color	Brown
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Tab
Fastening Type	Latch Lock
Features	Terminal Position Lock (TPA)
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	36
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	4 mm
Pitch [x]	0.157 in
Row Spacing	4.2 mm
Row Spacing	0.165 in

AMP MCP Connector System Series

Part	Contact Type	Contact Material	Insulation Color	Number of Positions Loaded	Termination	Voltage Rating	Contact Shape	Contact Length - Mating	Contact Length - Mating	Number of Positions	Insulation Height	Insulation Height	Mounting Type	Shrouding	Material Flammability Rating	Fastening Type	Style	Contact Finish - Post	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Pitch - Mating	Pitch - Mating	Connector Type	Row Spacing - Mating	Row Spacing - Mating	Row Spacing	Row Spacing	Pitch [x]	Pitch [x]	Color	Contact Termination	Features	Applications	Number of Rows	Contact Length - Post	Contact Length - Post	Note	Accessory Type	For Use With/Related Products	Contact Finish - Mating
TE Connectivity Raychem Cable Protection 1-2236715-2	Male Pin	Copper Alloy	Brown	All	Solder	36 VDC	Square	6.8 mm	0.268 in	36	1.112 in	28.24 mm	Through Hole Right Angle	Shrouded - 4 Wall	UL94 V-0	Push-Pull	Board to Cable/Wire	Tin	Polybutylene Terephthalate (PBT)	140 °C	-40 °C	0.157 "	4 mm	Header	0.157 in	4 mm
TE Connectivity Raychem Cable Protection 1-2112891-1	Tab									36			Free Hanging (In-Line)			Latch Lock			Polybutylene Terephthalate (PBT) Glass Filled	120 °C	-40 °C			Receptacle			4.2 mm	0.165 in	4 mm	0.157 in	Brown	Crimp	Terminal Position Lock (TPA)
TE Connectivity Raychem Cable Protection 966140-4	Tab	Copper Alloy	Black	All	Solder	28 VDC	Rectangular			9	1.012 in	25.7 mm	Through Hole Right Angle	Shrouded - 4 Wall		Latch Holder	Board to Board Cable	Tin	Polyamide (PA66) Nylon 6/6 Glass Filled	100 °C	-30 ░C	0.197 "	5 mm	Header	0.217 in	5.51 mm							Mounting Flange	Automotive General Purpose	3	0.118 in	3 mm
TE Connectivity Raychem Cable Protection 1534180-2	Female Socket												Free Hanging (In-Line)			Slide-On			Polyamide (PA66) Nylon 6/6					Receptacle							Black	Crimp			2			Contacts Not Included
TE Connectivity Raychem Cable Protection 9-966140-2	Tab	Copper Alloy	Black	All	Solder		Rectangular			15	1.012 in	25.7 mm	Through Hole Right Angle	Shrouded - 4 Wall		Latch Holder	Board to Board Cable		Polyamide (PA66) Nylon 6/6 Glass Filled	100 °C	-40 °C	0.197 "	5 mm	Header	0.217 in	5.51 mm							Mounting Flange	Automotive General Purpose	3	0.118 in	3 mm
TE Connectivity Raychem Cable Protection 1-1718485-4										36																													Carrier	MCP Series
TE Connectivity Raychem Cable Protection 1534159-1	Tab									4			Free Hanging (In-Line)			Push-Pull			Polybutylene Terephthalate (PBT) Glass Filled	130 °C	-40 °C			Plug					6 mm	0.236 in	Black	Crimp			1
TE Connectivity Raychem Cable Protection 4-966140-6	Tab	Copper Alloy	Natural	All	Solder		Rectangular			21	1.012 in	25.7 mm	Through Hole Right Angle	Shrouded - 4 Wall		Latch Holder	Board to Board Cable		Polyamide (PA66) Nylon 6/6 Glass Filled	100 °C	-40 °C	0.197 "	5 mm	Header	0.217 in	5.51 mm							Mounting Flange	Automotive General Purpose	3	0.118 in	3 mm				Silver
TE Connectivity Raychem Cable Protection 929092-1
TE Connectivity Raychem Cable Protection 1-1670782-1	Female Socket									18			Free Hanging (In-Line)			Latch Lock			Polybutylene Terephthalate (PBT) Glass Filled	125 °C	-30 ░C			Housing for Female Insert					3.5 mm	0.138 in	Black	Crimp			2			Contacts Not Included
