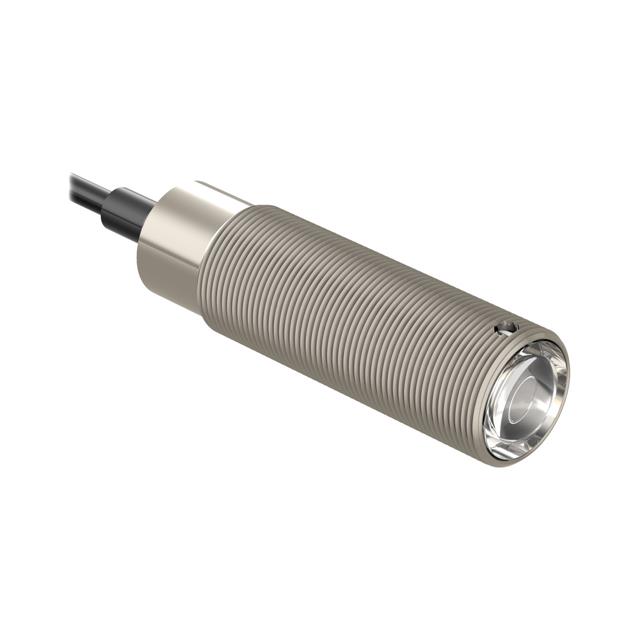

SM30SRLC

Active

BANNER ENGINEERING

SM30 SERIES: RECEIVER - FREQUENCY C STAINLESS STL

Search across all available documentation for this part.

Active

BANNER ENGINEERING

SM30 SERIES: RECEIVER - FREQUENCY C STAINLESS STL

Technical Specifications

Parameters and characteristics for this part

Specification	SM30SRLC

Cable Length	78.74 in
Cable Length	2 m
Connection Method	Cable
Ingress Protection	NEMA 6P, IEC IP67
Light Source	Infrared
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Output Configuration	NPN/PNP, Dark-ON/Light-ON, Selectable
Response Time	10 ms
Sensing Distance	492.13 ft
Sensing Distance	150 m
Sensing Method	Through-Beam
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensing Distance	Sensing Distance	Cable Length	Cable Length	Connection Method	Light Source	Ingress Protection	Response Time	Sensing Method	Output Configuration
BANNER ENGINEERING SM30SRLC	-40 °C	70 °C	30 VDC	10 VDC	492.13 ft	150 m	78.74 in	2 m	Cable	Infrared	NEMA 6P IEC IP67	10 ms	Through-Beam	Dark-ON/Light-ON NPN/PNP Selectable
BANNER ENGINEERING SM30SRLQD	-40 °C	70 °C	30 VDC	10 VDC	492.13 ft	150 m			Connector	Infrared	IP67 NEMA 6P		Reflective	NPN/PNP - Dark-ON/Light-ON
BANNER ENGINEERING SM30SRL W/30	-40 °C	70 °C	30 VDC	10 VDC	492.13 ft	150 m	78.74 in	2 m	Cable	Infrared	NEMA 6P IEC IP67	10 ms	Through-Beam	Dark-ON/Light-ON NPN/PNP Selectable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 344.00
Newark	Each	1	$ 344.00

General part information

Through-Beam Optical Sensor 492.13' (150m) NPN/PNP - Dark-ON/Light-ON - Selectable
