TURRET BOARD 10POS 0.375" SINGLE

Active

TURRET BOARD 10POS 0.375" SINGLE

Description

General part information

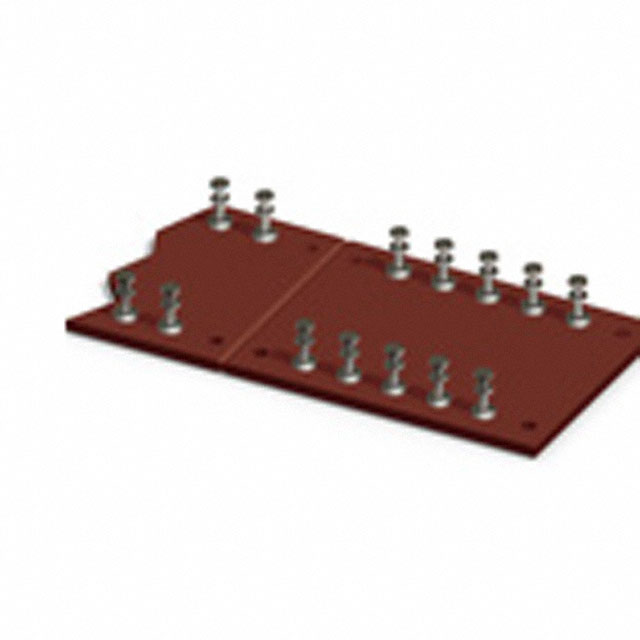

10 Position Turret Board 0.375" (9.53mm) Turret, Single End, Double Turret

Parameters and characteristics for this part

Specification	MS272492E1

Board Height	0.125 in
Board Length	2.625 in
Board Width	1.5 in
Contact Finish	Tin
Contact Material	Brass
Material - Board	Glass Epoxy
Mounting Hole Diameter	0.12 in
Number of Positions	10
Number of Rows	2
Pitch	0.375 in
Row Spacing	1 in
Terminal Type	Single End, Double Turret, Turret
Type	Turret Board

Part	Mounting Hole Diameter	Contact Finish	Contact Material	Type	Number of Rows	Pitch	Number of Positions	Material - Board	Board Length	Board Width	Board Height	Terminal Type	Row Spacing
Keystone Electronics MS272492E2	0.12 in	Tin	Brass	Scored Turret Board	2	0.375 in	20	Glass Epoxy	5.25 in	1.5 in	0.125 in	Double Turret Single End Turret	1 in
Keystone Electronics MS272492B5	0.12 in	Tin	Brass	Scored Turret Board	2	0.375 in	50	Glass Epoxy	13.125 in	1.5 in	0.125 in	Double Turret Single End Turret	1 in
Keystone Electronics MS272492B1	0.12 in	Tin	Brass	Turret Board	2	0.375 in	10	Glass Epoxy	2.625 in	1.5 in	0.125 in	Double Turret Single End Turret	1 in
Keystone Electronics MS272492B2	0.12 in	Tin	Brass	Scored Turret Board	2	0.375 in	20	Glass Epoxy	5.25 in	1.5 in	0.125 in	Double Turret Single End Turret	1 in
Keystone Electronics MS272492B3	0.12 in	Tin	Brass	Scored Turret Board	2	0.375 in	30	Glass Epoxy	7.785 in	1.5 in	0.093 in	Double Turret Single End Turret	1 in
Keystone Electronics MS272492E5	0.12 in	Tin	Brass	Scored Turret Board	2	0.375 in	50	Glass Epoxy	13.125 in	1.5 in	0.125 in	Double Turret Single End Turret	1 in
Keystone Electronics MS272492E3	0.12 in	Tin	Brass	Scored Turret Board	2	0.375 in	30	Glass Epoxy	7.785 in	1.5 in	0.093 in	Double Turret Single End Turret	1 in
Keystone Electronics MS272492E1	0.12 in	Tin	Brass	Turret Board	2	0.375 in	10	Glass Epoxy	2.625 in	1.5 in	0.125 in	Double Turret Single End Turret	1 in
