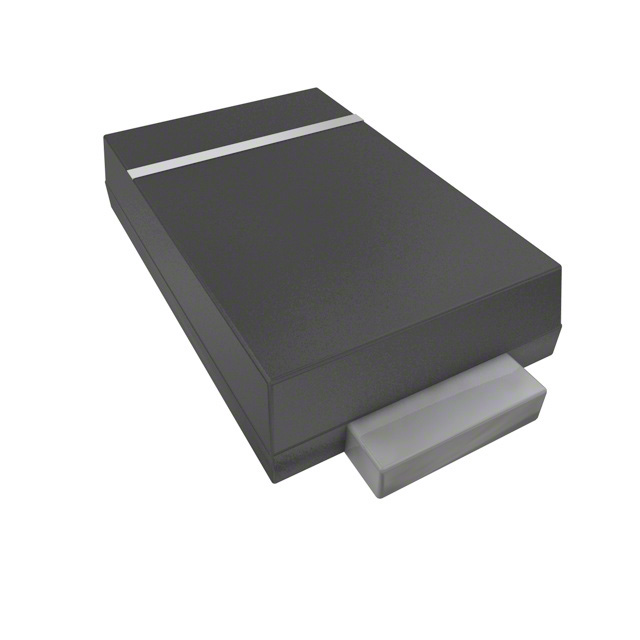

SBRT5A50SAF-13 - SBRT5A50SAF-13

SBRT5A50SAF-13

Active
Diodes Inc

RECTIFIER DIODE, 1 PHASE, 1 ELEMENT, 5A, 50V V(RRM), SILICON, GREEN, PLASTIC, SMAF, 2 PIN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetPackage PDF+3
SBRT5A50SAF-13 - SBRT5A50SAF-13

SBRT5A50SAF-13

Active
Diodes Inc

RECTIFIER DIODE, 1 PHASE, 1 ELEMENT, 5A, 50V V(RRM), SILICON, GREEN, PLASTIC, SMAF, 2 PIN

Deep-Dive with AI

DocumentsDatasheetPackage PDF+3

Technical Specifications

Parameters and characteristics for this part

SpecificationSBRT5A50SAF-13
Current - Average Rectified (Io)5 A
Current - Reverse Leakage @ Vr150 µA
Mounting TypeSurface Mount
Operating Temperature - Junction [Max]150 °C
Operating Temperature - Junction [Min]-55 °C
Package / CaseSMA Flat Leads, DO-221AC
SpeedStandard Recovery >500ns
Speed200 mA
Supplier Device PackageSMAF
TechnologySuper Barrier
Voltage - DC Reverse (Vr) (Max) [Max]50 V
Voltage - Forward (Vf) (Max) @ If530 mV

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 0.56
10$ 0.48
100$ 0.33
500$ 0.26
1000$ 0.21
2000$ 0.19
5000$ 0.18
Digi-Reel® 1$ 0.56
10$ 0.48
100$ 0.33
500$ 0.26
1000$ 0.21
2000$ 0.19
5000$ 0.18
Tape & Reel (TR) 10000$ 0.17
30000$ 0.16
NewarkEach (Supplied on Cut Tape) 1$ 0.76
10$ 0.55
25$ 0.51
50$ 0.47
100$ 0.43
250$ 0.39
500$ 0.36
1000$ 0.30

Description

General part information

SBRT5A50SAF Series

Reduced ultra-low forward voltage drop (VF); better efficiency and cooler operation.

Reduced high temperature reverse leakage; Increased reliability against thermal runaway failure in high temperature operation.

Lead-Free Finish; RoHS Compliant
