C2686A.41.10
ActivePrysmian Group

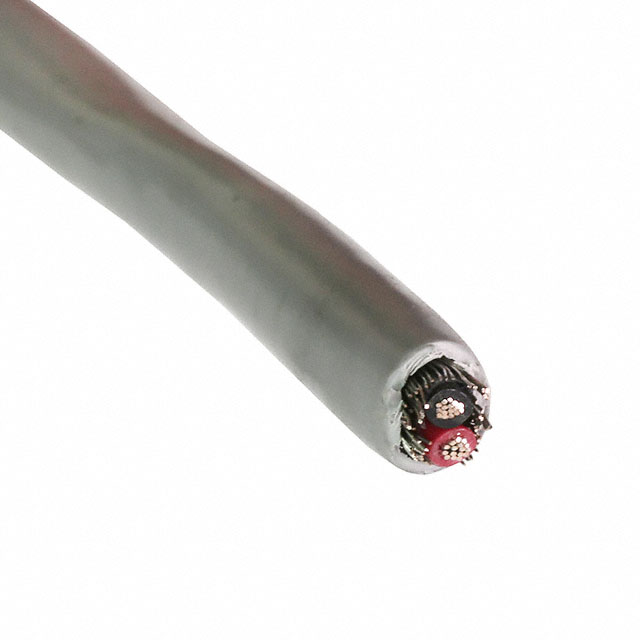

CABLE 2CON 18AWG GRAY SHLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C2686A.41.10 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Annealed Tinned |
| Conductor Strand [custom] | 16 |
| Conductor Strand [custom] | 30 AWG |
| Jacket (Insulation) Diameter [diameter] | 0.252 in |
| Jacket (Insulation) Diameter [diameter] | 6.4 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Gray |
| Length | 1000 ft |
| Length | 304.8 m |
| Length [x] | 30.5 m |
| Length [x] | 100 ft |
| Number of Conductors | 2 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Ratings | ASTM B-33 |
| Shield Coverage | 75 % |
| Shield Material | Copper, Tinned |
| Shield Type | Braid |
| Usage | Control, Communication |
| Voltage | 300 V |
| Wire Gauge | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 214.24 | |
| 5 | $ 175.29 | |||
| 10 | $ 136.34 | |||
| Spool | 1000 | $ 1.10 | ||
| 2000 | $ 1.04 | |||
| 3000 | $ 1.01 | |||
| 5000 | $ 0.98 | |||
| 7000 | $ 0.95 | |||
| 10000 | $ 0.93 | |||
Description
General part information
C2686 Series
2 Conductor Multi-Conductor Cable Gray 18 AWG Braid 1000.0' (304.8m)
