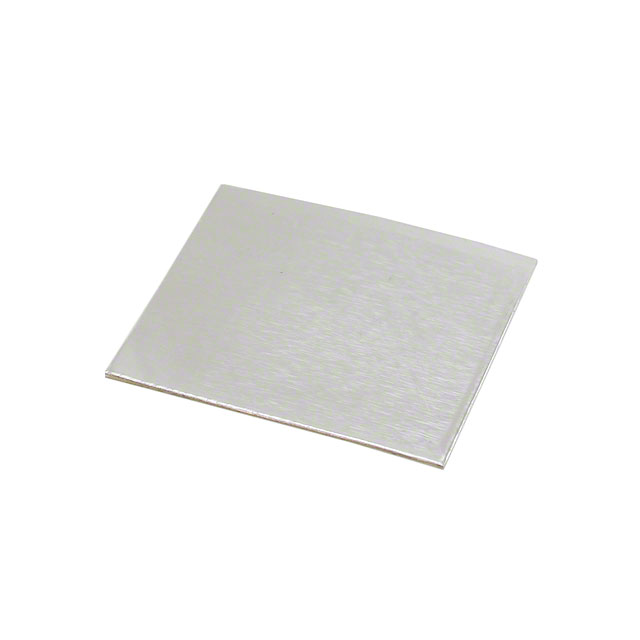

5-1120-3/4S

Active

3M (TC)

RF SHLDING SHEET 0.75"X0.75" 5PK

Search across all available documentation for this part.

Active

3M (TC)

RF SHLDING SHEET 0.75"X0.75" 5PK

Technical Specifications

Parameters and characteristics for this part

Part	Adhesive	Type	Shape	Material	Thickness - Overall [custom]	Thickness - Overall [custom]	Width	Width [x]	Length	Length	Width	Length [x]	Length [x]	Shelf Life	Shelf Life Start
3M (TC) 1120-1-2(5)	Conductive Single Sided	Shielding Sheet	Rectangular	Aluminum Foil	0.004 "	0.1 mm	25.4 mm	1 in	50.8 mm	2 in
3M (TC) 5-1120-1-4R	Conductive Single Sided	Shielding Sheet	Rectangular	Aluminum Foil	0.004 "	0.1 mm	25.4 mm	1 in	101.6 mm	4 in
3M (TC) 5-1120-1.5	Conductive Single Sided	Shielding Sheet	Circular	Aluminum Foil	0.004 "	0.1 mm	38.1 mm	1.5 in
3M (TC) 5-1120-1.5S	Conductive Single Sided	Shielding Sheet	Square	Aluminum Foil	0.004 "	0.1 mm	38.1 mm	1.5 in	38.1 mm	1.5 "
3M (TC) 5-1120-3/4-4R	Conductive Single Sided	Shielding Sheet	Rectangular	Aluminum Foil	0.004 "	0.1 mm	19.1 mm		101.6 mm	4 in	0.75 in
3M (TC) 5-1120-3/4-3R	Conductive Single Sided	Shielding Sheet	Rectangular	Aluminum Foil	0.004 "	0.1 mm	19.1 mm		76.2 mm	3 in	0.75 in
3M (TC) 5-1120-1-3R	Conductive Single Sided	Shielding Sheet	Rectangular	Aluminum Foil	0.004 "	0.1 mm	25.4 mm	1 in	76.2 mm	3 in
3M (TC) 5-1120-1S	Conductive Single Sided	Shielding Sheet	Square	Aluminum Foil	0.004 "	0.1 mm	25.4 mm	1 in				1 in	25.4 mm
3M (TC) 5-1120-3/4S	Conductive Single Sided	Shielding Sheet	Square	Aluminum Foil	0.004 "	0.1 mm	19.1 mm				0.75 in	0.75 in	19.1 mm	60 Months	Date of Manufacture
3M (TC) 5-1120-1/2	Conductive Single Sided	Shielding Sheet	Circular	Aluminum Foil	0.004 "	0.1 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF EMI Shielding Sheet 1120 Aluminum Foil Conductive, Single Sided 0.750" (19.10mm) X 0.750" (19.10mm) X 0.004" (0.10mm)

Technical documentation and resources
