K50PTCKQP

Active

BANNER ENGINEERING

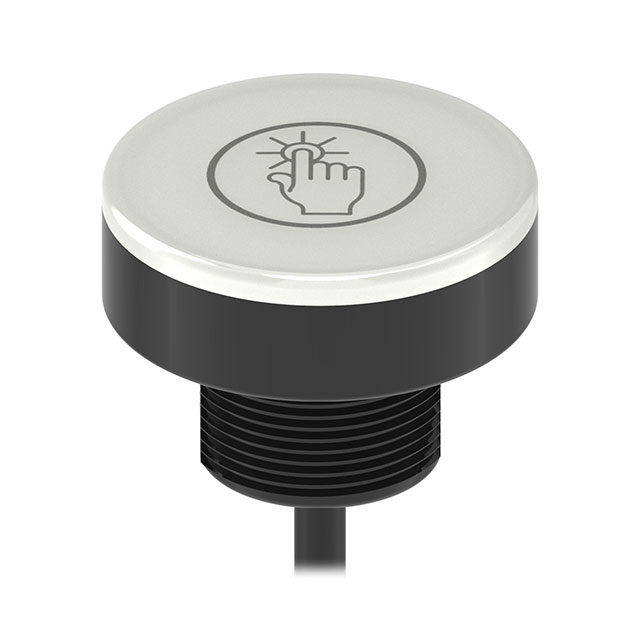

K50 PRO COMPACT TOUCH WITH IO-LINK SERIES: RGB TOUCH SENSOR

Search across all available documentation for this part.

Active

BANNER ENGINEERING

K50 PRO COMPACT TOUCH WITH IO-LINK SERIES: RGB TOUCH SENSOR

Technical Specifications

Parameters and characteristics for this part

Specification	K50PTCKQP

Actuator Type	Flush, Button, Round
Approval Agency	cULus, CE
Ingress Protection	IP69K, IP67
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	30 mm
Response Time	300 ms
Termination Style	Cable with Connector (M12)
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	18

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Panel Cutout Dimensions [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Ingress Protection	Termination Style	Response Time	Actuator Type	Illumination Type, Color	Circuit	Switch Function
BANNER ENGINEERING K50PTCKQP	30 VDC	18	Panel Mount Front	30 mm	-40 °C	50 °C	CE cULus	IP67 IP69K	Cable with Connector (M12)	300 ms	Button Flush Round
BANNER ENGINEERING K50PTCAMGRY3QP	30 VDC	12 V	Panel Mount Front	30 mm	-40 °C	50 °C	CE cULus	IP67 IP69K	Cable with Connector (M12)	300 ms	Button Flush Round	Green LED Red Yellow	SPST-NO	Off-Mom
BANNER ENGINEERING K50PTCAMRGB14	30 VDC	12 V	Panel Mount Front	30 mm	-40 °C	50 °C	CE cULus	IP67 IP69K	Cable Leads	300 ms	Button Flush Round	Blue Green LED Red	SPST-NO	Off-Mom
BANNER ENGINEERING K50PTCAMGRY3	30 VDC	12 V	Panel Mount Front	30 mm	-40 °C	50 °C	CE cULus	IP67 IP69K	Cable Leads	300 ms	Button Flush Round	Green LED Red Yellow	SPST-NO	Off-Mom
BANNER ENGINEERING K50PTCAMRGB14Q	30 VDC	12 V	Panel Mount Front	30 mm	-40 °C	50 °C	CE cULus	IP67 IP69K	Connector (M12)	300 ms	Button Flush Round	Blue Green LED Red	SPST-NO	Off-Mom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 185.00
Newark	Each	1	$ 185.00

General part information

K50 PRO COMPACT TOUCH WITH IO-LINK SERIES: RGB TOUCH SENSOR
