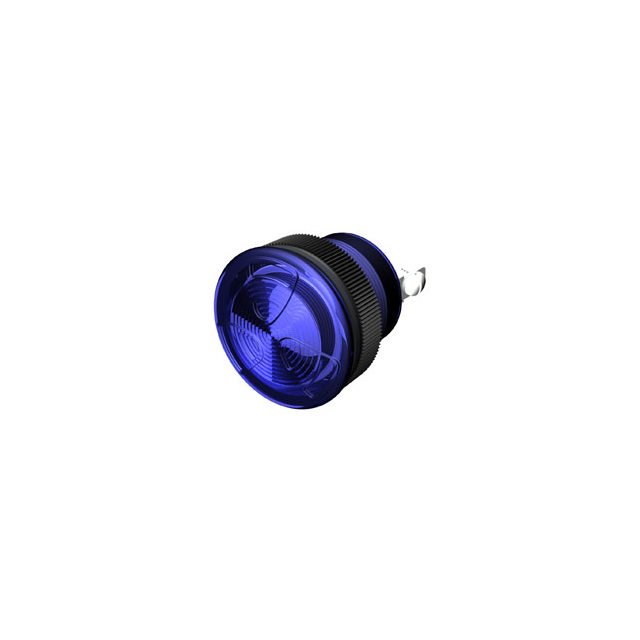

TLM-87B-930-S
ActiveFloyd Bell Inc
PANEL MOUNT BLUE CONTINUOUS OUTP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TLM-87B-930-S
ActiveFloyd Bell Inc
PANEL MOUNT BLUE CONTINUOUS OUTP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TLM-87B-930-S |
|---|---|
| Current | 40 mA |
| Ingress Protection | IP68 |
| Lamp Color | Blue |
| Lens Color | Blue |
| Lens Size [diameter] | 33 mm |
| Lens Transparency | Diffused |
| Panel Cutout Dimensions | 26.8 mm |
| Panel Cutout Dimensions | 1.06 " |
| Panel Cutout Shape | Round |
| Ratings | DC |
| Termination Style | Screw Terminal |
| Type | LED |
| Voltage [Max] | 30 V |
| Voltage [Min] | 9 V |
TLM-87 Series
| Part | Lens Transparency | Ingress Protection | Lamp Color | Panel Cutout Shape | Current | Type | Panel Cutout Dimensions | Panel Cutout Dimensions | Lens Color | Termination Style | Ratings | Voltage [Min] | Voltage [Max] | Lens Size [diameter] | Current [Min] | Current [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Floyd Bell Inc | Diffused | IP68 | Red | Round | 40 mA | LED | 26.8 mm | 1.06 " | Red | Quick Connect | DC | 9 V | 30 V | 33 mm | ||
Floyd Bell Inc | Diffused | IP68 | Yellow | Round | 40 mA | LED | 26.8 mm | 1.06 " | Yellow | Quick Connect | DC | 9 V | 30 V | 33 mm | ||
Floyd Bell Inc | Diffused | IP68 | White | Round | 40 mA | LED | 26.8 mm | 1.06 " | Colorless | Screw Terminal | DC | 9 V | 30 V | 33 mm | ||
Floyd Bell Inc | Diffused | IP68 | Green | Round | LED | 26.8 mm | 1.06 " | Green | Quick Connect | DC | 9 V | 30 V | 33 mm | 40 mA | 80 mA | |
Floyd Bell Inc | Diffused | IP68 | Red | Round | 40 mA | LED | 26.8 mm | 1.06 " | Red | Screw Terminal | DC | 9 V | 30 V | 33 mm | ||
Floyd Bell Inc | Diffused | IP68 | Green | Round | 40 mA | LED | 26.8 mm | 1.06 " | Green | Screw Terminal | DC | 9 V | 30 V | 33 mm | ||
Floyd Bell Inc | Diffused | IP68 | Blue | Round | 40 mA | LED | 26.8 mm | 1.06 " | Blue | Screw Terminal | DC | 9 V | 30 V | 33 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
TLM-87 Series
LED Panel Indicator Blue Diffused 9V ~ 30V 40mA Screw Terminal
