EPG.00.304.HLN

Active

LEMO

CONN R/A PCB RCPT 4SKT

Search across all available documentation for this part.

Active

LEMO

CONN R/A PCB RCPT 4SKT

Technical Specifications

Parameters and characteristics for this part

Specification	EPG.00.304.HLN

Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	59 Áin
Contact Finish Thickness - Mating	1.5 Ám
Contact Material	Bronze
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Features	Ground
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	4
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Orientation	G
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass and Polyphenylene Sulfide (PPS)
Shell Size - Insert	304
Shielding	Shielded
Termination	Solder

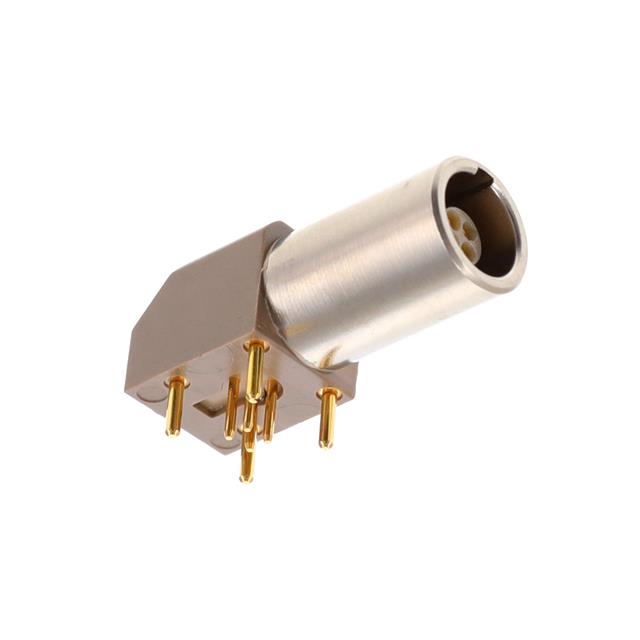

CONN R/A PCB RCPT 4SKT

Part	Orientation	Shell Size - Insert	Shell Material	Insert Material	Mounting Type	Contact Finish - Mating	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shielding	Ingress Protection	Features	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Material Flammability Rating	Fastening Type	Connector Type	Primary Material	Contact Material	Termination	Number of Positions
LEMO EPG.00.304.HLN	G	304	Brass and Polyphenylene Sulfide (PPS)	Polyetheretherketone (PEEK)	Through Hole, Right Angle	Gold	2 A	59 Áin	1.5 Ám	Shielded	IP50	Ground	-55 °C	250 °C	Nickel	UL94 V-0	Push-Pull	Receptacle, Female Sockets	Metal	Bronze	Solder	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Female Sockets Solder
