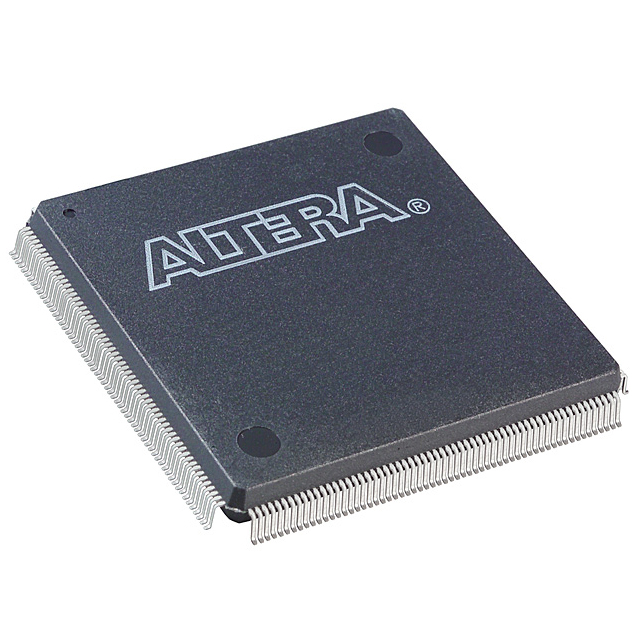

EP20K100EQC240-1

Obsolete

Altera

IC FPGA 183 I/O 240QFP

Search across all available documentation for this part.

Obsolete

Altera

IC FPGA 183 I/O 240QFP

Technical Specifications

Parameters and characteristics for this part

Specification	EP20K100EQC240-1

Mounting Type	Surface Mount
Number of Gates	263000
Number of I/O	183
Number of LABs/CLBs	416
Number of Logic Elements/Cells	4160
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	0 °C
Package / Case	240-BFQFP
Supplier Device Package	240-PQFP (32x32)
Total RAM Bits	53248
Voltage - Supply [Max]	1.89 V
Voltage - Supply [Min]	1.71 V

Part	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of LABs/CLBs	Number of Logic Elements/Cells	Number of Gates	Number of I/O	Total RAM Bits	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package	Package / Case
Altera EP20K100QC240-3V	Surface Mount	0 °C	85 °C	416	4160	263000	189	53248	2.375 V	2.625 V	240-PQFP (32x32)	240-BFQFP
Altera EP20K100EFC324-1	Surface Mount	0 °C	85 °C	416			246		1.71 V	1.89 V	324-FBGA (19x19)	324-BGA
Altera EP20K100EFC144-3	Surface Mount	0 °C	85 °C	416			93		1.71 V	1.89 V	144-FBGA (13x13)	144-BGA
Altera EP20K100EFC324-1N	Surface Mount	0 °C	85 °C	416	4160	263000	246	53248	1.71 V	1.89 V	324-FBGA (19x19)	324-BGA
Altera EP20K100EFC144-2	Surface Mount	0 °C	85 °C	416			93		1.71 V	1.89 V	144-FBGA (13x13)	144-BGA
Altera EP20K100EFI324-2X	Surface Mount	-40 C	100 °C	416	4160	263000	246	53248	1.71 V	1.89 V	324-FBGA (19x19)	324-BGA
Altera EP20K100EQI240-2X	Surface Mount	-40 C	100 °C	416	4160	263000	183	53248	1.71 V	1.89 V	240-PQFP (32x32)	240-BFQFP
Altera EP20K100ETC144-2	Surface Mount	0 °C	85 °C	416	4160	263000	92	53248	1.71 V	1.89 V	144-TQFP (20x20)	144-LQFP
Altera EP20K100EQC240-1	Surface Mount	0 °C	85 °C	416	4160	263000	183	53248	1.71 V	1.89 V	240-PQFP (32x32)	240-BFQFP
Altera EP20K100QC240-3	Surface Mount	0 °C	85 °C	416	4160	263000	189	53248	2.375 V	2.625 V	240-PQFP (32x32)	240-BFQFP

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

APEX-20KE® Field Programmable Gate Array (FPGA) IC 183 53248 4160 240-BFQFP
