112662-10

Active

Amphenol RF

BNC STRAIGHT CRIMP JACK BELDEN 1694A BULKHEAD REAR MOUNT 75 OHM

Search across all available documentation for this part.

Active

Amphenol RF

BNC STRAIGHT CRIMP JACK BELDEN 1694A BULKHEAD REAR MOUNT 75 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	112662-10

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-6 Double Braid, Belden 1694A
Center Contact Material	Brass, Phosphor Bronze
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	3 GHz
Housing Color	Silver
Impedance	75 Ohms

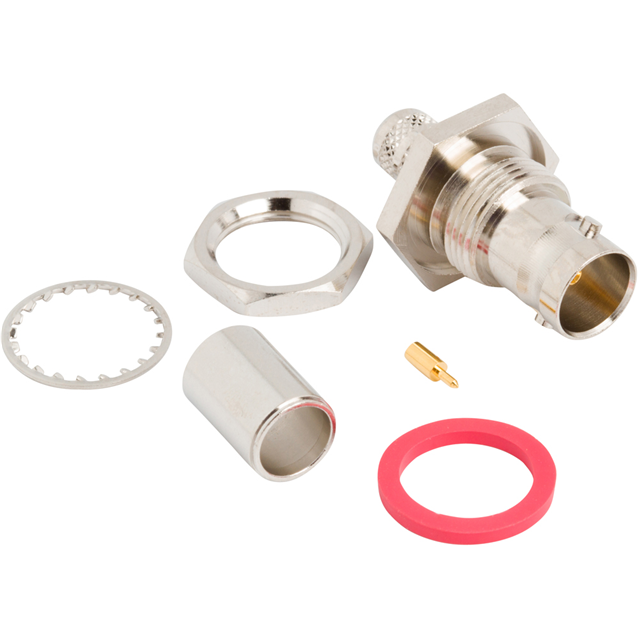

Includes	1 Lockwasher, 1 Contact, 1 Nut, 1 Ferrule, 1 Gasket, 1 Connector
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Center Contact Material	Body Finish	Number of Ports	Housing Color	Insertion Loss	Body Material	Shield Termination	Cable Group	Includes	Connector Style	Frequency - Max [Max]	Mounting Feature	Mating Cycles	Fastening Type	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Dielectric Material	Connector Type	Impedance	Contact Termination
Amphenol RF 112662-10	Brass Phosphor Bronze	Nickel	1	Silver	0.2 dB	Brass	Crimp	RG-6 Double Braid Belden 1694A	1 Connector 1 Contact 1 Ferrule 1 Gasket 1 Lockwasher 1 Nut	BNC	3 GHz	Bulkhead - Front Side Nut	500	Bayonet Lock	500 V	-65 ░C	165 °C	Gold	Polytetrafluoroethylene (PTFE)	Female Socket Jack	75 Ohms	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Jack, Female Socket 75 Ohms Panel Mount Crimp
