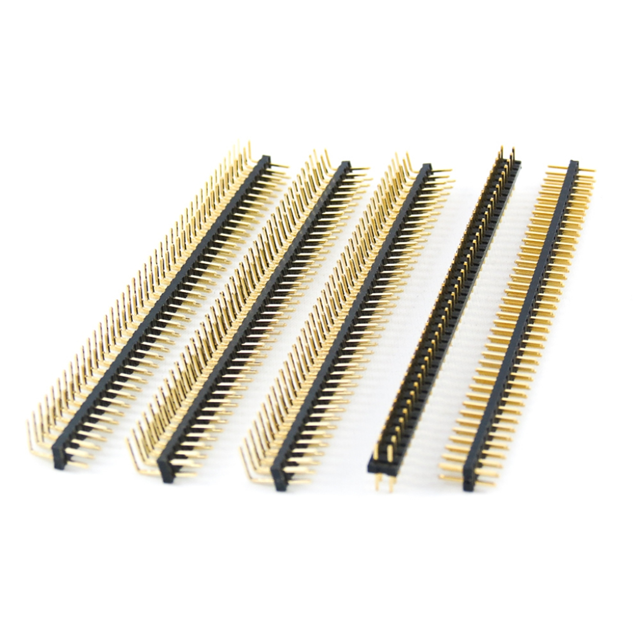

2111-2X08G00SB

Active

Oupiin

PIN HEADER, DOUBLE ROW, 16 PIN,

Deep-Dive with AI

Search across all available documentation for this part.

2111-2X08G00SB

Active

Oupiin

PIN HEADER, DOUBLE ROW, 16 PIN,

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.34

Description

General part information

2111 Series

Connector Header Through Hole 16 position 0.079" (2.00mm)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2111-2X08G00SB	2111 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Gold
Contact Finish Thickness - Mating	Flash	Flash
Contact Finish Thickness - Post	Flash	Flash
Contact Length - Mating	3.7 mm	0.217 - 6.4 mm
Contact Length - Mating	0.146 in	0.126 - 0.252 in
Contact Length - Mating	-	5.5 mm
Contact Length - Post	0.118 in	0.098 - 0.146 in
Contact Length - Post	3 mm	2.5 - 3.7 mm
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	2 A	2 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black	Black
Insulation Height	1.5 mm	1.5 - 2.2 mm
Insulation Height	0.059 "	0.059 - 0.087 "
Insulation Height	-	0.157 in
Insulation Height	-	4 mm
Insulation Material	Nylon 6T, Polyamide (PA6T)	Nylon 6T, Polyamide (PA6T)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole, Through Hole, Right Angle
Number of Positions	16	16
Number of Positions	-	2 - 60
Number of Positions Loaded	All	All
Number of Rows	2	1 - 2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Overall Contact Length	8.2 mm	8.2 mm
Overall Contact Length	0.323 in	0.323 - 11.6 in
Overall Contact Length	-	9.5 mm
Overall Contact Length	-	0.374 in
Overall Contact Length	-	0.457 "
Pitch - Mating	-	0.1 in
Pitch - Mating	-	2.54 mm
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Row Spacing - Mating	0.079 in	0.079 in
Row Spacing - Mating	2 mm	2 mm
Shrouding	Unshrouded	Unshrouded
Termination	Solder	Solder
Voltage Rating	125 VDC	125 VDC

2111 Series

PIN HEADER, DOUBLE ROW, 10 PIN,

Part	Row Spacing - Mating	Row Spacing - Mating	Number of Positions	Connector Type	Contact Shape	Contact Finish - Post	Contact Length - Mating	Contact Length - Mating	Contact Material	Shrouding	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Overall Contact Length	Overall Contact Length	Contact Finish - Mating	Termination	Number of Rows	Material Flammability Rating	Mounting Type	Contact Type	Contact Length - Post	Contact Length - Post	Insulation Material	Voltage Rating	Insulation Color	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions Loaded	Contact Finish Thickness - Post	Fastening Type	Insulation Height [custom]	Insulation Height [custom]	Number of Positions	Pitch - Mating	Pitch - Mating
Oupiin 2111-2X05G00SB	0.079 in	2 mm	10	Header	Square	Gold	3.7 mm	0.146 in	Brass	Unshrouded	2 A	-40 °C	105 ░C	8.2 mm	0.323 in	Gold	Solder	2	UL94 V-0	Through Hole	Male Pin	0.118 in	3 mm	Nylon 6T, Polyamide (PA6T)	125 VDC	Black	Flash	1.5 mm	0.059 "	0.079 in	2 mm	All	Flash	Push-Pull
Oupiin 2111-2X11G00SB	0.079 in	2 mm	22 positions	Header	Square	Gold	3.7 mm	0.146 in	Brass	Unshrouded	2 A	-40 °C	105 ░C	8.2 mm	0.323 in	Gold	Solder	2	UL94 V-0	Through Hole	Male Pin	0.118 in	3 mm	Nylon 6T, Polyamide (PA6T)	125 VDC	Black	Flash	1.5 mm	0.059 "	0.079 in	2 mm	All	Flash	Push-Pull
Oupiin 2111-2X06G00SB	0.079 in	2 mm	12	Header	Square	Gold	3.7 mm	0.146 in	Brass	Unshrouded	2 A	-40 °C	105 ░C	8.2 mm	0.323 in	Gold	Solder	2	UL94 V-0	Through Hole	Male Pin	0.118 in	3 mm	Nylon 6T, Polyamide (PA6T)	125 VDC	Black	Flash	1.5 mm	0.059 "	0.079 in	2 mm	All	Flash	Push-Pull
Oupiin 2111-2X13G00SB	0.079 in	2 mm	26	Header	Square	Gold	3.7 mm	0.146 in	Brass	Unshrouded	2 A	-40 °C	105 ░C	8.2 mm	0.323 in	Gold	Solder	2	UL94 V-0	Through Hole	Male Pin	0.118 in	3 mm	Nylon 6T, Polyamide (PA6T)	125 VDC	Black	Flash	1.5 mm	0.059 "	0.079 in	2 mm	All	Flash	Push-Pull
Oupiin 2111-2X05G00RB	0.079 in	2 mm	10	Header	Square	Gold	3.7 mm	0.146 in	Brass	Unshrouded	2 A	-40 °C	105 ░C			Gold	Solder	2	UL94 V-0	Through Hole, Right Angle	Male Pin	0.118 in	3 mm	Nylon 6T, Polyamide (PA6T)	125 VDC	Black	Flash			0.079 in	2 mm	All	Flash	Push-Pull	0.157 in	4 mm
Oupiin 2111-2X08G00SB	0.079 in	2 mm		Header	Square	Gold	3.7 mm	0.146 in	Brass	Unshrouded	2 A	-40 °C	105 ░C	8.2 mm	0.323 in	Gold	Solder	2	UL94 V-0	Through Hole	Male Pin	0.118 in	3 mm	Nylon 6T, Polyamide (PA6T)	125 VDC	Black	Flash	1.5 mm	0.059 "	0.079 in	2 mm	All	Flash	Push-Pull			16
Oupiin 2111-2X03G00SB	0.079 in	2 mm	6	Header	Square	Gold	3.7 mm	0.146 in	Brass	Unshrouded	2 A	-40 °C	105 ░C	8.2 mm	0.323 in	Gold	Solder	2	UL94 V-0	Through Hole	Male Pin	0.118 in	3 mm	Nylon 6T, Polyamide (PA6T)	125 VDC	Black	Flash	1.5 mm	0.059 "	0.079 in	2 mm	All	Flash	Push-Pull
Oupiin 2111-1X06G00SB			6	Header	Square	Gold	3.7 mm	0.146 in	Brass	Unshrouded	2 A	-40 °C	105 ░C	8.2 mm	0.323 in	Gold	Solder	1	UL94 V-0	Through Hole	Male Pin	0.118 in	3 mm	Nylon 6T, Polyamide (PA6T)	125 VDC	Black	Flash	1.5 mm	0.059 "			All	Flash	Push-Pull				0.1 in	2.54 mm
Oupiin 2111-1X02G00SB			2	Header	Square	Gold	3.7 mm	0.146 in	Brass	Unshrouded	2 A	-40 °C	105 ░C	8.2 mm	0.323 in	Gold	Solder	1	UL94 V-0	Through Hole	Male Pin	0.118 in	3 mm	Nylon 6T, Polyamide (PA6T)	125 VDC	Black	Flash	1.5 mm	0.059 "			All	Flash	Push-Pull				0.1 in	2.54 mm
Oupiin 2111-1X03G00SB				Header	Square	Gold	3.7 mm	0.146 in	Brass	Unshrouded	2 A	-40 °C	105 ░C	8.2 mm	0.323 in	Gold	Solder	1	UL94 V-0	Through Hole	Male Pin	0.118 in	3 mm	Nylon 6T, Polyamide (PA6T)	125 VDC	Black	Flash	1.5 mm	0.059 "			All	Flash	Push-Pull				0.1 in	2.54 mm
