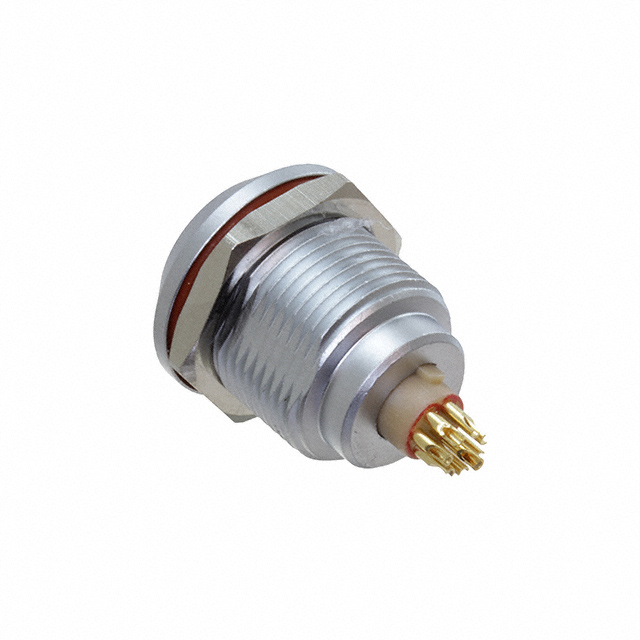

FLKC-08EGFS-GCP-001

Active

Amphenol LTW

CONN RCPT FMALE 8P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Amphenol LTW

CONN RCPT FMALE 8P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	FLKC-08EGFS-GCP-001

Applications	Testing Equipment & Measurement, Medical, Industrial, Telecommunications, Instrumentation
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Push-Pull
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyphenylene Sulfide (PPS)
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	8
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	G
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Copper Alloy
Shell Size - Insert	C-8
Shielding	Shielded
Voltage Rating	250 VDC

Part	Shielding	Shell Finish	Primary Material	Contact Material	Mounting Feature	Connector Type	Voltage Rating	Shell Material	Color	Orientation	Contact Finish - Mating	Insert Material	Number of Positions	Applications	Fastening Type	Ingress Protection	Current Rating (Amps)	Shell Size - Insert	Operating Temperature [Max]	Operating Temperature [Min]
Amphenol LTW FLKC-08EGFS-GCP-001	Shielded	Chrome	Metal	Copper Alloy	Bulkhead - Rear Side Nut	Receptacle Female Sockets	250 VDC	Copper Alloy	Silver	G	Gold	Polyphenylene Sulfide (PPS)	8	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	Push-Pull	IP68 - Dust Tight Waterproof	5 A	C-8	125 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Circular Connector Receptacle, Female Sockets Solder Cup
