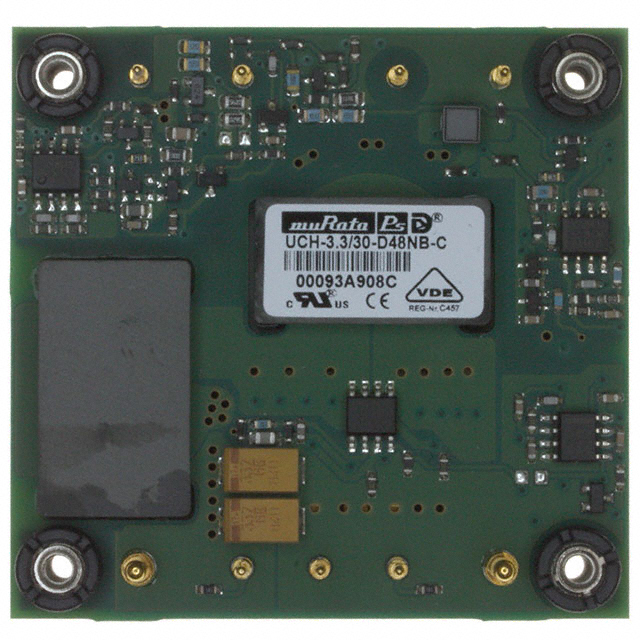

UCH-3.3/30-D48NB-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 3.3V 99W
Deep-Dive with AI
Search across all available documentation for this part.
UCH-3.3/30-D48NB-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 3.3V 99W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | UCH-3.3/30-D48NB-C | UCH-3.3 Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Current - Output (Max) [Max] | 30 A | 10 - 30 A |
| Efficiency | 90 % | 89 - 90 % |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 9-DIP Module, 1/2 Brick | 9-DIP Module, 1/2 Brick |
| Power (Watts) | 99 W | 33 - 99 W |
| Size / Dimension [x] | 2.4 in | 2.4 in |
| Size / Dimension [x] | 61 mm | 61 mm |
| Size / Dimension [y] | 2.3 " | 2.3 " |
| Size / Dimension [y] | 58.4 mm | 58.4 mm |
| Size / Dimension [z] | 0.4 " | 0.4 " |
| Size / Dimension [z] | 10.2 mm | 10.2 mm |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V | 36 - 75 V |
| Voltage - Input (Min) [Min] | 36 V | 18 - 36 V |
| Voltage - Isolation | 2250 VDC | 2250 VDC |
| Voltage - Output 1 | 3.3 V | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
UCH-3.3 Series
DC DC CONVERTER 3.3V 33W
| Part | Voltage - Isolation | Current - Output (Max) [Max] | Power (Watts) | Voltage - Input (Max) [Max] | Efficiency | Voltage - Output 1 | Number of Outputs | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Package / Case | Mounting Type | Applications | Voltage - Input (Min) [Min] | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. UCH-3.3/10-D24PB-C | 2250 VDC | 10 A | 33 W | 36 V | 89 % | 3.3 V | 1 | 85 °C | -40 °C | 2.4 in | 0.4 " | 61 mm | 2.3 " | 58.4 mm | 10.2 mm | 9-DIP Module, 1/2 Brick | Through Hole | ITE (Commercial) | 18 V | Isolated Module |
Murata Power Solutions Inc. UCH-3.3/30-D48NB-C | 2250 VDC | 30 A | 99 W | 75 V | 90 % | 3.3 V | 1 | 85 °C | -40 °C | 2.4 in | 0.4 " | 61 mm | 2.3 " | 58.4 mm | 10.2 mm | 9-DIP Module, 1/2 Brick | Through Hole | ITE (Commercial) | 36 V | Isolated Module |
Description
General part information
UCH-3.3 Series
Isolated Module DC DC Converter 1 Output 3.3V 30A 36V - 75V Input
