6800-0-15-15-34-27-04-0

Active

Mill-Max Manufacturing Corp.

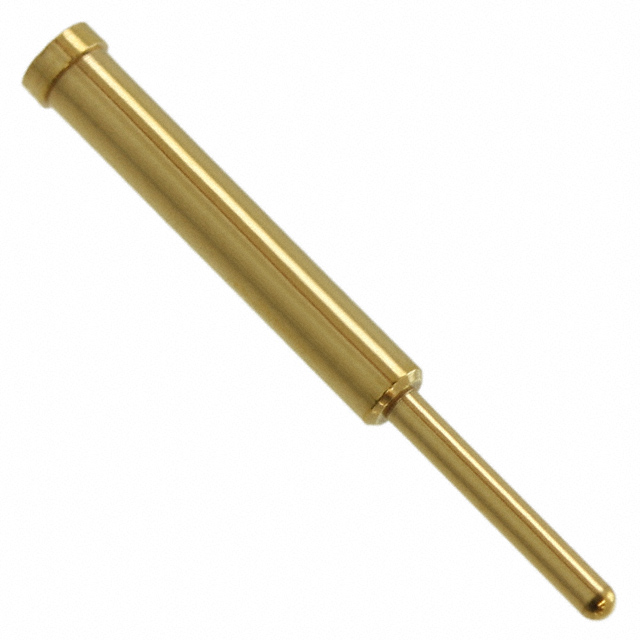

CONN PIN RCPT .032-.046 SOLDER

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .032-.046 SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	6800-0-15-15-34-27-04-0

Accepts Pin Diameter	0.81 mm, 1.17 mm
Accepts Pin Diameter [Max]	0.046 in
Accepts Pin Diameter [Min]	0.032 "
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Beryllium Copper
Flange Diameter [diameter]	2.29 mm
Flange Diameter [diameter]	0.09 in
Length - Overall [x]	20.32 mm
Length - Overall [x]	0.8 in
Mounting Hole Diameter [diameter]	2.03 mm
Mounting Hole Diameter [diameter]	0.08 in
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	1.63 mm
Pin Hole Diameter [diameter]	0.064 in
Tail Diameter	1.02 mm
Tail Diameter [diameter]	0.04 "
Tail Type	Standard Tail
Termination	Solder

Part	Contact Material	Flange Diameter [diameter]	Flange Diameter [diameter]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Termination	Tail Diameter [diameter]	Tail Diameter	Accepts Pin Diameter	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Tail Type	Length - Overall [x]	Length - Overall [x]
Mill-Max Manufacturing Corp. 6800-0-15-80-34-14-04-0	Beryllium Copper	2.29 mm	0.09 in	1.63 mm	0.064 in	Solder	0.04 "	1.02 mm	0.81 mm 1.17 mm	0.046 in	0.032 "	Gold	10 Áin	0.25 Ám	2.03 mm	0.08 in	-55 °C	125 °C	Standard Tail	20.32 mm	0.8 in
Mill-Max Manufacturing Corp. 6800-0-15-01-34-14-04-0	Beryllium Copper	2.29 mm	0.09 in	1.63 mm	0.064 in	Solder	0.04 "	1.02 mm	0.81 mm 1.17 mm	0.046 in	0.032 "	Gold	10 Áin	0.25 Ám	2.03 mm	0.08 in	-55 °C	125 °C	Standard Tail	20.32 mm	0.8 in
Mill-Max Manufacturing Corp. 6800-0-15-15-34-27-04-0	Beryllium Copper	2.29 mm	0.09 in	1.63 mm	0.064 in	Solder	0.04 "	1.02 mm	0.81 mm 1.17 mm	0.046 in	0.032 "	Gold	30 Áin	0.76 Ám	2.03 mm	0.08 in	-55 °C	125 °C	Standard Tail	20.32 mm	0.8 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pin Receptacle Connector 0.032" ~ 0.046" (0.81mm ~ 1.17mm) Standard Tail Solder
