90HBJ08PT

Active

Grayhill Inc.

SWITCH SLIDE DIP SPST 0.025A 24V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH SLIDE DIP SPST 0.025A 24V

Technical Specifications

Parameters and characteristics for this part

SWITCH SLIDE DIP SPST 0.025A 24V

Part	Current Rating (Amps)	Termination Style	Contact Material	Electrical Life	Actuator Type	Mounting Type	Pitch [x]	Pitch	Pitch [x]	Contact Finish	Circuit	Length [x]	Length [x]	Mechanical Life	Actuator Level	Features	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Washable	Body Material	Voltage Rating
Grayhill Inc. 90HBJ08PT	25 mA	J Lead	Copper Alloy	2000 Steps	Slide (Standard)	Surface Mount	0.1 in	Full	2.54 mm	Gold	SPST	0.87 in	22.1 mm	2000 Cycles	Flush, Recessed	Tape Seal	8	85 °C	-40 °C		Thermoplastic	24 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

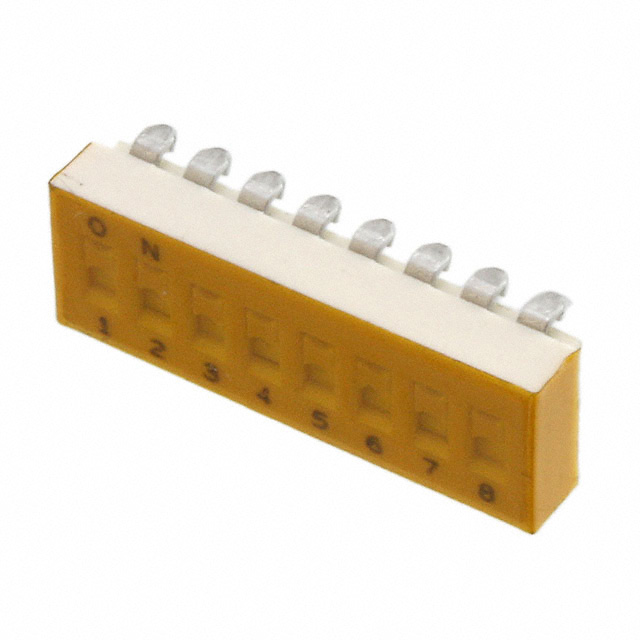

Dip Switch SPST 8 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
