R3500S010A-E2-FE
ActiveNisshinbo Micro Devices Inc
42V INPUT 4CH WINDOW VOLTAGE DET
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
R3500S010A-E2-FE
ActiveNisshinbo Micro Devices Inc
42V INPUT 4CH WINDOW VOLTAGE DET
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | R3500S010A-E2-FE |
|---|---|
| Mounting Type | Surface Mount |
| Number of Voltages Monitored | 4 |
| Operating Temperature [Max] | 105 °C |
| Operating Temperature [Min] | -40 °C |
| Output | Open Drain or Open Collector |

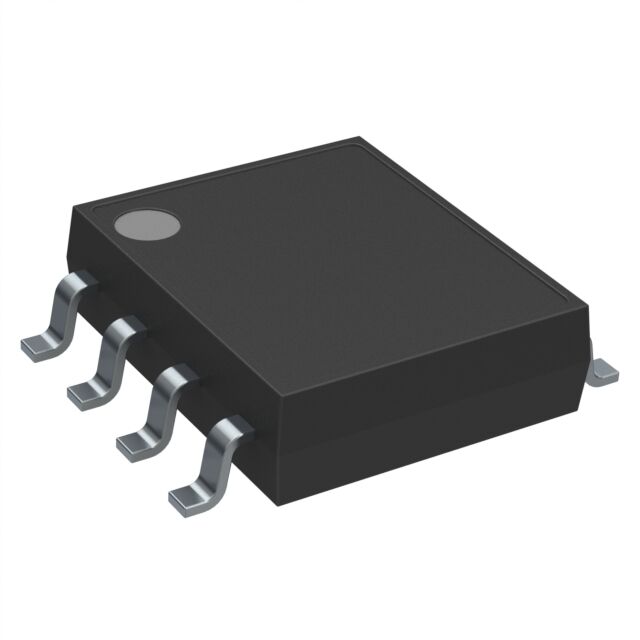

| Package / Case | 18-LFSOP, Exposed Pad |
| Package / Case [custom] | 4.4 mm |
| Package / Case [x] | 0.173 in |
| Reset | Active High |
| Reset Timeout [Min] | 2.5 ms |
| Supplier Device Package | 18-HSOP |
| Type | Voltage Detector |
| Voltage - Threshold | 1 V |
| Voltage - Threshold | Adj |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.04 | |
| 10 | $ 3.63 | |||
| 25 | $ 3.43 | |||
| 100 | $ 2.97 | |||
| 250 | $ 2.82 | |||
| 500 | $ 2.53 | |||
| Digi-Reel® | 1 | $ 4.04 | ||
| 10 | $ 3.63 | |||
| 25 | $ 3.43 | |||
| 100 | $ 2.97 | |||
| 250 | $ 2.82 | |||
| 500 | $ 2.53 | |||
| Tape & Reel (TR) | 1000 | $ 2.08 | ||
| 2000 | $ 1.97 | |||
| 3000 | $ 1.92 | |||
| 5000 | $ 1.89 | |||
Description
General part information
R3500S Series
Supervisor Open Drain or Open Collector 4 Channel 18-HSOP
