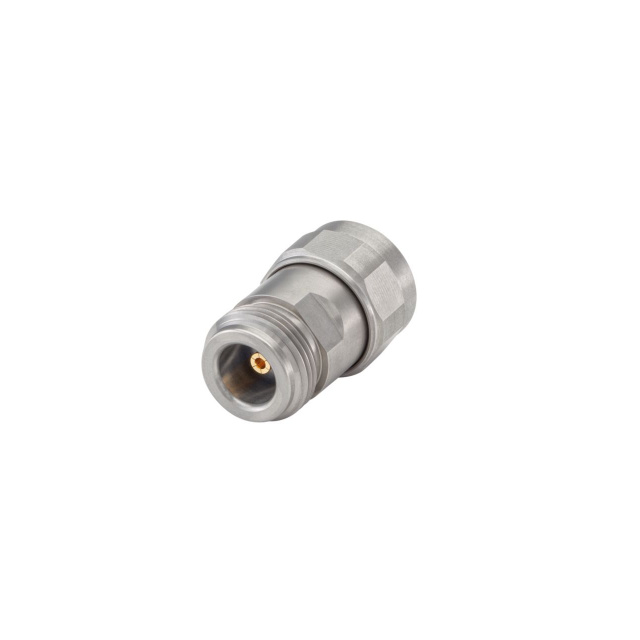

05K106-K20S3

Active

Rosenberger

PRECISION N TYPE CALIBRATION ADA

Search across all available documentation for this part.

Active

Rosenberger

PRECISION N TYPE CALIBRATION ADA

Technical Specifications

Parameters and characteristics for this part

Specification	05K106-K20S3

Accessory Type	Calibration Adapter
For Use With/Related Products	Network Analyzer
Specifications	TNC Jack, N Type Jack
Type	Specialized

Part	For Use With/Related Products	Accessory Type	Type	Specifications	Insertion Loss	Center Gender	Adapter Series	Conversion Type	Mating Cycles	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Convert From (Adapter End)	Frequency - Max [Max]	Impedance	Style	Adapter Type	Convert To (Adapter End)	Body Material	Center Contact Material	Center Contact Plating
Rosenberger 05K106-K20S3	Network Analyzer	Calibration Adapter	Specialized	N Type Jack TNC Jack
Rosenberger 05K106-K00S3					0.42 dB	Female to Female	RJC-N to RJC-TNC	Between Series	500	Free Hanging (In-Line)	85 °C	-40 °C	Polyphenylene Ether (PPE) Polytetrafluoroethylene (PTFE)	Female Socket N Jack	18 GHz	50 Ohms	Straight	Jack to Jack	Female Socket TNC Jack	Stainless Steel	Beryllium Copper	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 1069.76

General part information

Specialized Calibration Adapter for use with Network Analyzer

Technical documentation and resources
