Q6F1BXXB24E
ActiveAPEM
LED PANEL MOUNT INDICATOR, FLUSH BEZEL, BLUE, 24 VDC, 6 MM, 20 MA, 8 MCD, IP67
Deep-Dive with AI
Search across all available documentation for this part.
Q6F1BXXB24E
ActiveAPEM
LED PANEL MOUNT INDICATOR, FLUSH BEZEL, BLUE, 24 VDC, 6 MM, 20 MA, 8 MCD, IP67
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q6F1BXXB24E |
|---|---|
| Ingress Protection | IP67 |
| Lamp Color | Blue |
| Lens Color | Blue |
| Lens Size | 3 mm |
| Lens Size | T-1 |
| Lens Transparency | Diffused |
| Millicandela Rating | 100 mcd |
| Panel Cutout Dimensions | 6.1 mm |
| Panel Cutout Dimensions | 0.24 in |
| Panel Cutout Shape | Round |
| Ratings | DC |
| Termination Style | Solder Lug |
| Type | LED |
| Viewing Angle | 100 ° |
| Voltage | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
Q6F1BXXB Series

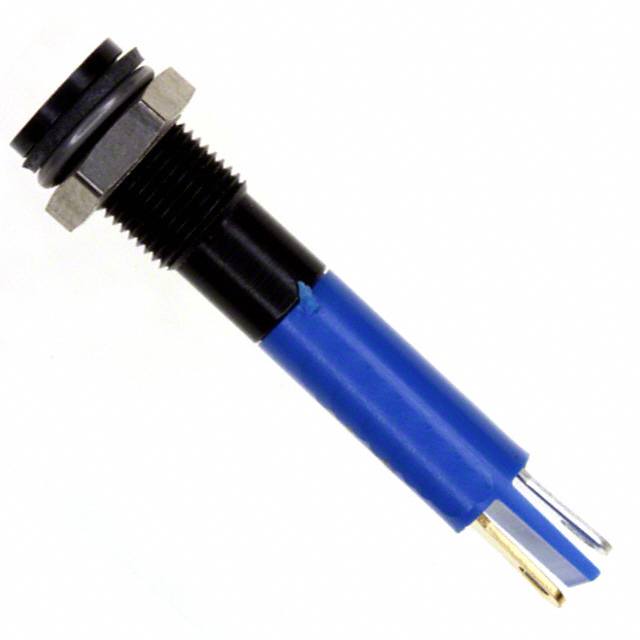

The Q6F1BXXB24E is a blue panel-mount LED Indicator with flush-style black chrome bezel and solder lug/Faston terminals. It offers fixed light illumination.
