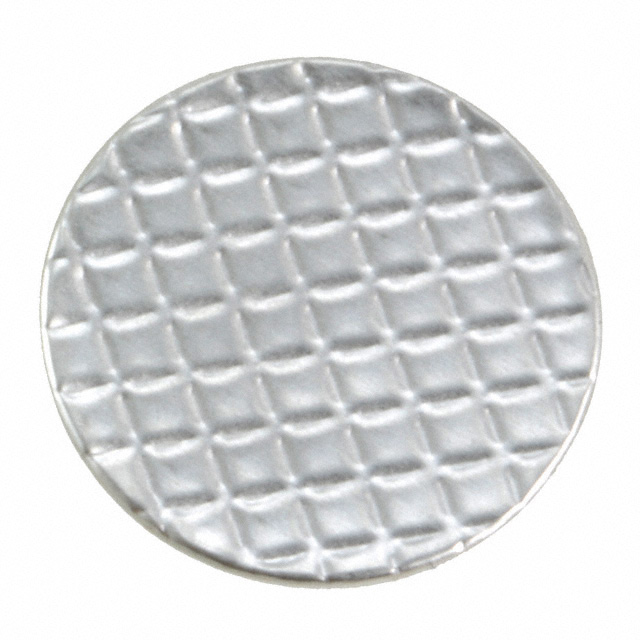

1345CIR-0.5(5)

Active

3M (TC)

RF EMI SHIELDING SHEET 0.5" 5PK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1345CIR-0.5(5)

Active

3M (TC)

RF EMI SHIELDING SHEET 0.5" 5PK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1345CIR-0.5(5)

Adhesive	Conductive, Single Sided
Material	Embossed Tin-Plated Copper Foil
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-40 °C
Shape	Circular
Shelf Life	60 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	10 °C
Thickness - Overall [custom]	0.004 "
Thickness - Overall [custom]	0.1 mm
Type	Shielding Sheet

5-1345 Series

Part	Shelf Life Start	Width	Width [x]	Operating Temperature [Min]	Operating Temperature [Max]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Material	Shelf Life	Shape	Type	Length	Length	Thickness - Overall [custom]	Thickness - Overall [custom]	Adhesive	Length [x]	Length [x]	Width	Width [x]
3M (TC) 5-1345-1-2R	Date of Manufacture	25.4 mm	1 in	-40 °C	130 °C	27 °C 80 °F	10 °C	Embossed Tin-Plated Copper Foil	60 Months	Rectangular	Shielding Sheet	50.8 mm	2 in	0.004 "	0.1 mm	Conductive Single Sided
3M (TC) 1345SQ-1(5)	Date of Manufacture	25.4 mm	1 in	-40 °C	130 °C	27 °C 80 °F	10 °C	Embossed Tin-Plated Copper Foil	60 Months	Square	Shielding Sheet			0.004 "	0.1 mm	Conductive Single Sided	1 in	25.4 mm
3M (TC) 1345-0.75-2(5)	Date of Manufacture	19.1 mm		-40 °C	130 °C	27 °C 80 °F	10 °C	Embossed Tin-Plated Copper Foil	60 Months	Rectangular	Shielding Sheet	50.8 mm	2 in	0.004 "	0.1 mm	Conductive Single Sided			0.75 in
3M (TC) 1345-0.5-4(5)	Date of Manufacture			-40 °C	130 °C	27 °C 80 °F	10 °C	Embossed Tin-Plated Copper Foil	60 Months	Rectangular	Shielding Sheet	101.6 mm	4 in	0.004 "	0.1 mm	Conductive Single Sided
3M (TC) 1345SQ-0.75(5)	Date of Manufacture	19.1 mm		-40 °C	130 °C	27 °C 80 °F	10 °C	Embossed Tin-Plated Copper Foil	60 Months	Square	Shielding Sheet			0.004 "	0.1 mm	Conductive Single Sided	0.75 in	19.1 mm	0.75 in
3M (TC) 5-1345-2S	Date of Manufacture		2 in	-40 °C	130 °C	27 °C 80 °F	10 °C	Embossed Tin-Plated Copper Foil	60 Months	Square	Shielding Sheet	50.8 mm	2 in	0.004 "	0.1 mm	Conductive Single Sided				50.8 mm
3M (TC) 5-1345-1.5S	Date of Manufacture	38.1 mm	1.5 in	-40 °C	130 °C	27 °C 80 °F	10 °C	Embossed Tin-Plated Copper Foil	60 Months	Square	Shielding Sheet	38.1 mm	1.5 "	0.004 "	0.1 mm	Conductive Single Sided
3M (TC) 5-1345-1/2-3R	Date of Manufacture			-40 °C	130 °C	27 °C 80 °F	10 °C	Embossed Tin-Plated Copper Foil	60 Months	Rectangular	Shielding Sheet	76.2 mm	3 in	0.004 "	0.1 mm	Conductive Single Sided
3M (TC) 1345CIR-0.5(5)	Date of Manufacture			-40 °C	130 °C	27 °C 80 °F	10 °C	Embossed Tin-Plated Copper Foil	60 Months	Circular	Shielding Sheet			0.004 "	0.1 mm	Conductive Single Sided
3M (TC) 5-1345-1-3R	Date of Manufacture	25.4 mm	1 in	-40 °C	130 °C	27 °C 80 °F	10 °C	Embossed Tin-Plated Copper Foil	60 Months	Rectangular	Shielding Sheet	76.2 mm	3 in	0.004 "	0.1 mm	Conductive Single Sided

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 11.73
		10	$ 10.61
		25	$ 9.41
		100	$ 8.06
		250	$ 8.01

Description

General part information

5-1345 Series

RF EMI Shielding Sheet 1345 Embossed Tin-Plated Copper Foil Conductive, Single Sided 0.500" (12.70mm) X X 0.004" (0.10mm)
