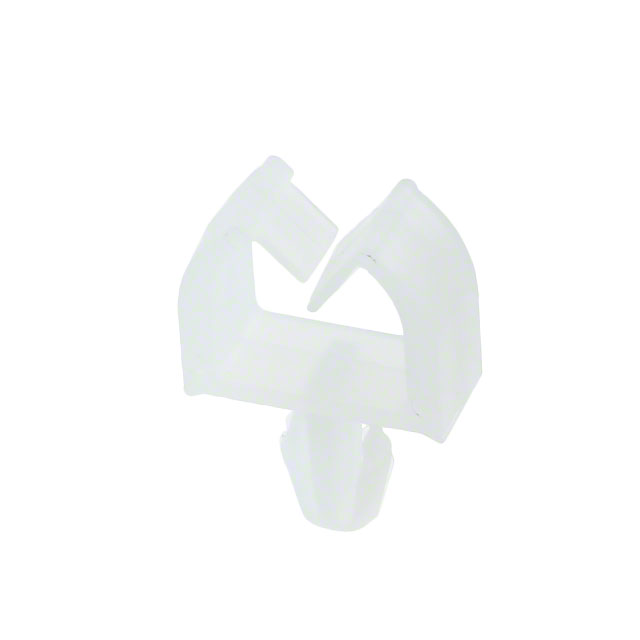

MWSEA1-1-01

Active

Essentra Access Solutions

CBL CLIP WIRE SADDLE NAT ARROW

Search across all available documentation for this part.

Active

Essentra Access Solutions

CBL CLIP WIRE SADDLE NAT ARROW

Technical Specifications

Parameters and characteristics for this part

Specification	MWSEA1-1-01

Color	Natural
Height [z]	7.36 mm
Height [z]	0.29 in
Length [x]	0.36 in
Length [x]	9.14 mm
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Arrowhead
Opening Size [x]	6.6 mm
Opening Size [x]	0.26 in
Opening Size [y]	3.05 mm
Opening Size [y]	0.12 in
Panel Hole Size	0.118 in
Panel Hole Size	3 mm
Panel Thickness	0.063 in
Panel Thickness	1.6 mm
Type	Clip, Wire Saddle
Type Attributes	Micro
Width [x]	4.06 mm
Width [x]	0.16 "

Part	Type	Material	Panel Thickness	Panel Thickness	Type Attributes	Color	Mounting Type	Features	Material Flammability Rating	Width [x]	Width [x]	Panel Hole Size	Panel Hole Size	Height [z]	Height [z]	Length	Length	Opening Size [y]	Opening Size [x]	Opening Size [x]	Opening Size [y]	Length [x]	Length [x]
Essentra Access Solutions MWSEA1-2-19	Clip Wire Saddle	Polyamide (PA66) Nylon 6/6	0.063 in	1.6 mm	Micro	Natural	Arrowhead	Flame Retardant	UL94 V-0	4.06 mm	0.16 "	0.118 in	3 mm	0.36 in	9.14 mm	10.67 mm	0.42 "
Essentra Access Solutions MWSEA1-1-01	Clip Wire Saddle	Polyamide (PA66) Nylon 6/6	0.063 in	1.6 mm	Micro	Natural	Arrowhead		UL94 V-2	4.06 mm	0.16 "	0.118 in	3 mm	0.29 in	7.36 mm			3.05 mm	6.6 mm	0.26 in	0.12 in	0.36 in	9.14 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clip, Wire Saddle Natural Arrowhead 0.260" L x 0.120" H (6.60mm x 3.05mm)

Technical documentation and resources

No documents available
