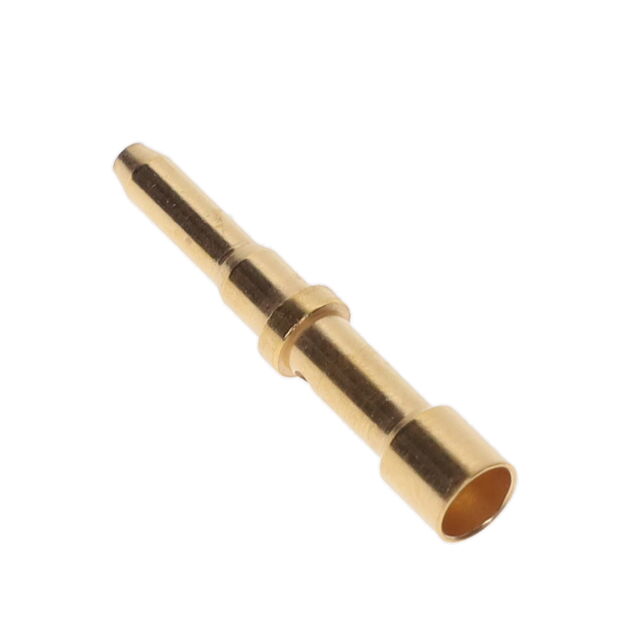

3602-0-07-21-00-00-08-0
ActiveMill-Max Manufacturing Corp.
PC PIN .062 DIA 3602 SERIES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3602-0-07-21-00-00-08-0
ActiveMill-Max Manufacturing Corp.
PC PIN .062 DIA 3602 SERIES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3602-0-07-21-00-00-08-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.51 µm |
| Contact Finish Thickness | 20 µin |
| Contact Material | Brass Alloy |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 0.282 in |
| Length - Above Flange [x] | 7.16 mm |
| Length - Below Flange [x] | 6.99 mm |
| Length - Below Flange [x] | 0.275 in |
| Length - Overall [x] | 0.588 in |
| Length - Overall [x] | 14.94 mm |
| Mounting Type | Free Hanging (In-Line) |
| Pin Size - Above Flange [diameter] | 0.062 in |
| Pin Size - Above Flange [diameter] | 1.57 mm |
| Terminal Style | Wire |
| Terminal Type | PC Pin |
| Termination | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.26 | |
| 10 | $ 1.97 | |||
| 25 | $ 1.88 | |||
| 50 | $ 1.84 | |||
| 100 | $ 1.76 | |||
| 250 | $ 1.59 | |||
| 500 | $ 1.47 | |||
| 1000 | $ 1.26 | |||
| 3000 | $ 1.17 | |||
Description
General part information
3602-0 Series
PC Pin Terminal Connector Free Hanging (In-Line) Gold 0.062" (1.57mm) Dia
