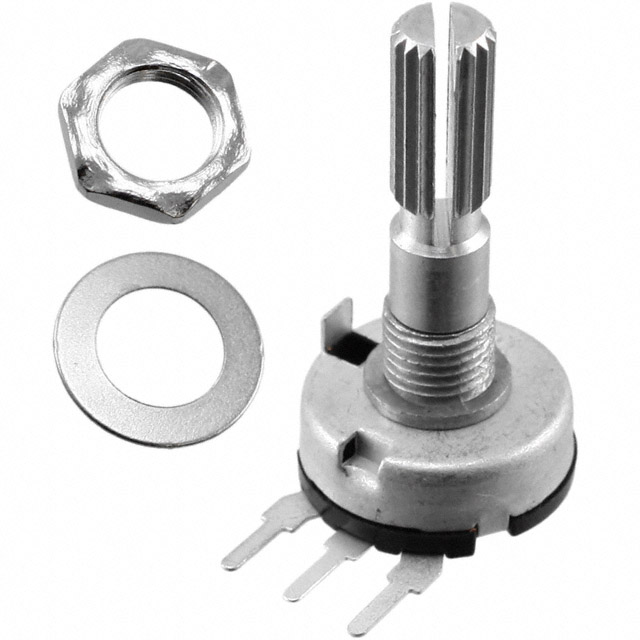

P170N2-QC25BR1K
ActiveTT Electronics/BI
POT 1K OHM 1/10W PLASTIC LINEAR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
P170N2-QC25BR1K
ActiveTT Electronics/BI
POT 1K OHM 1/10W PLASTIC LINEAR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | P170N2-QC25BR1K | P170N Series |
|---|---|---|
| Actuator Diameter [diameter] | 0.236 in | 0.236 in |
| Actuator Diameter [diameter] | 6 mm | 6 mm |
| Actuator Length | - | 0.591 - 0.787 in |
| Actuator Length | - | 15 mm |
| Actuator Length | - | 20 mm |
| Actuator Length [x] | 0.984 in | 0.394 - 0.984 in |
| Actuator Length [x] | 25 mm | 10 - 25 mm |
| Actuator Type | Knurled and Slotted | Knurled and Slotted, Flatted |
| Adjustment Type | Side Adjustment | User Defined, Top Adjustment, Side Adjustment, Rear Adjustment |
| Built in Switch | False | False |
| Bushing Thread | 0.75 | 0.75 |
| Bushing Thread | M7 | M7 |
| Number of Gangs | 1 | 1 |
| Number of Turns | 1 | 1 |
| Power (Watts) | 0.1 W | 0.1 - 50 W |
| Power (Watts) | 0.1 W | 0.05 - 0.1 W |
| Resistance (Ohms) | 1 kOhms | 1 - 500 kOhms |
| Resistance (Ohms) | - | 10k, 250k, 1M |
| Resistive Material | Conductive Plastic | Conductive Plastic |
| Rotation | 260 ° | 260 ° |
| Size - Body | Round | Round |
| Size - Body [diameter] | 17 mm | 17 mm |
| Size - Body [diameter] | 0.669 in | 0.669 in |
| Taper | Linear | Linear, Logarithmic |
| Termination Style | PC Pins | Solder Lug, PC Pins |
| Tolerance | 20 % | 20 % |
P170N Series
POT 10K OHM 1/10W PLASTIC LINEAR
| Part | Actuator Length [x] | Actuator Length [x] | Built in Switch | Termination Style | Taper | Tolerance | Number of Turns | Resistance (Ohms) | Bushing Thread | Bushing Thread | Resistive Material | Number of Gangs | Rotation | Size - Body [diameter] | Size - Body | Size - Body [diameter] | Actuator Type | Adjustment Type | Power (Watts) | Power (Watts) | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Resistance (Ohms) | Actuator Length [z] | Actuator Length | Actuator Length [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TT Electronics/BI P170N-QC12BR10K | 0.472 in | 12 mm | Solder Lug | Linear | 20 % | 1 | 10k | 0.75 | M7 | Conductive Plastic | 1 | 260 ° | 17 mm | Round | 0.669 in | Knurled and Slotted | User Defined | 0.1 W | 0.1 W | 0.236 in | 6 mm | |||||
TT Electronics/BI P170NP1-QC12BR5K | 0.472 in | 12 mm | PC Pins | Linear | 20 % | 1 | 0.75 | M7 | Conductive Plastic | 1 | 260 ° | 17 mm | Round | 0.669 in | Knurled and Slotted | Top Adjustment | 0.1 W | 0.1 W | 0.236 in | 6 mm | 5 kOhms | |||||
TT Electronics/BI P170NP1-FD15BR500K | PC Pins | Linear | 20 % | 1 | 0.75 | M7 | Conductive Plastic | 1 | 260 ° | 17 mm | Round | 0.669 in | Flatted | Top Adjustment | 0.1 W | 0.1 W | 0.236 in | 6 mm | 500 kOhms | 0.591 in | 15 mm | |||||
TT Electronics/BI P170NP1-FD15AR250K | PC Pins | Logarithmic | 20 % | 1 | 250k | 0.75 | M7 | Conductive Plastic | 1 | 260 ° | 17 mm | Round | 0.669 in | Flatted | Top Adjustment | 50 mW | 0.05 W | 0.236 in | 6 mm | 0.591 in | 15 mm | |||||
TT Electronics/BI P170N2-QB20BR100K | PC Pins | Linear | 20 % | 1 | 0.75 | M7 | Conductive Plastic | 1 | 260 ° | 17 mm | Round | 0.669 in | Knurled and Slotted | Side Adjustment | 0.1 W | 0.1 W | 0.236 in | 6 mm | 100 kOhms | 0.787 in | 20 mm | |||||
TT Electronics/BI P170N2-QC25BR1K | 0.984 in | 25 mm | PC Pins | Linear | 20 % | 1 | 0.75 | M7 | Conductive Plastic | 1 | 260 ° | 17 mm | Round | 0.669 in | Knurled and Slotted | Side Adjustment | 0.1 W | 0.1 W | 0.236 in | 6 mm | 1 kOhms | |||||
TT Electronics/BI P170N2-FC15B20K | PC Pins | Linear | 20 % | 1 | 0.75 | M7 | Conductive Plastic | 1 | 260 ° | 17 mm | Round | 0.669 in | Flatted | Side Adjustment | 0.1 W | 0.1 W | 0.236 in | 6 mm | 20 kOhms | 0.591 in | 15 mm | |||||
TT Electronics/BI P170N-QC20BR500 | Solder Lug | Linear | 20 % | 1 | 0.75 | M7 | Conductive Plastic | 1 | 260 ° | 17 mm | Round | 0.669 in | Knurled and Slotted | User Defined | 0.1 W | 0.1 W | 0.236 in | 6 mm | 500 Ohms | 0.787 in | 20 mm | |||||
TT Electronics/BI P170NPD-FC10AR10K | 0.394 in | 10 mm | PC Pins | Logarithmic | 20 % | 1 | 10k | 0.75 | M7 | Conductive Plastic | 1 | 260 ° | 17 mm | Round | 0.669 in | Flatted | Rear Adjustment | 50 mW | 0.05 W | 0.236 in | 6 mm | |||||
TT Electronics/BI P170NP1-FD15BR100K | PC Pins | Linear | 20 % | 1 | 0.75 | M7 | Conductive Plastic | 1 | 260 ° | 17 mm | Round | 0.669 in | Flatted | Top Adjustment | 0.1 W | 0.1 W | 0.236 in | 6 mm | 100 kOhms | 0.591 in | 15 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.55 | |
| 10 | $ 1.36 | |||
| 25 | $ 1.22 | |||
| 40 | $ 1.17 | |||
| 80 | $ 1.12 | |||
| 230 | $ 1.08 | |||
| 440 | $ 0.89 | |||
| 1100 | $ 0.84 | |||
| 5500 | $ 0.82 | |||
Description
General part information
P170N Series
1k Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Conductive Plastic 0.1W, 1/10W PC Pins
