P170N-QC20BR500

Active

TT Electronics/BI

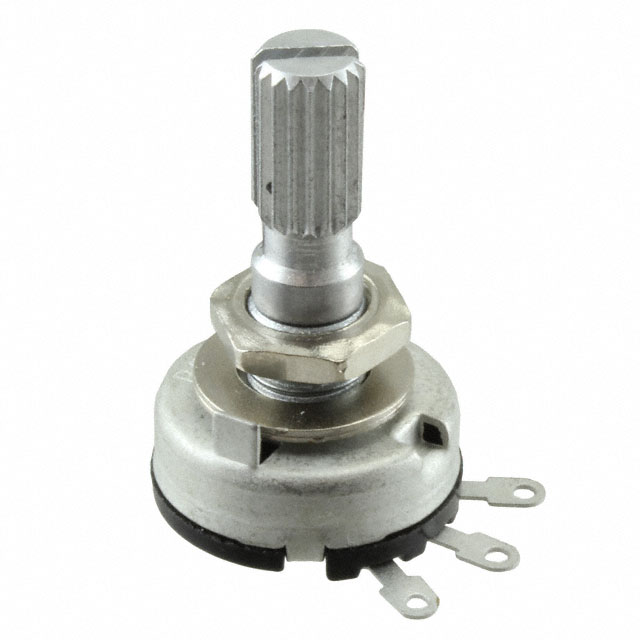

POT 500 OHM 1/10W PLASTIC LINEAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

P170N-QC20BR500

Active

TT Electronics/BI

POT 500 OHM 1/10W PLASTIC LINEAR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.55
		10	$ 1.36
		25	$ 1.22
		40	$ 1.17
		80	$ 1.12
		230	$ 1.08
		440	$ 0.89
		1100	$ 0.84
		5500	$ 0.82

Description

General part information

P170N Series

500 Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Conductive Plastic 0.1W, 1/10W Solder Lug

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	P170N-QC20BR500	P170N Series

Actuator Diameter [diameter]	0.236 in	0.236 in
Actuator Diameter [diameter]	6 mm	6 mm
Actuator Length	-	0.394 - 0.984 in
Actuator Length	-	10 - 25 mm
Actuator Length	-	15 mm
Actuator Length [z]	20 mm	20 mm
Actuator Length [z]	0.787 in	0.591 - 0.787 in
Actuator Type	Knurled and Slotted	Knurled and Slotted, Flatted
Adjustment Type	User Defined	User Defined, Top Adjustment, Side Adjustment, Rear Adjustment
Built in Switch	False	False
Bushing Thread	0.75	0.75
Bushing Thread	M7	M7
Number of Gangs	1	1
Number of Turns	1	1
Power (Watts)	0.1 W	0.1 - 50 W
Power (Watts)	0.1 W	0.05 - 0.1 W
Resistance (Ohms)	500 Ohms	1 - 500 kOhms
Resistance (Ohms)	-	10k, 250k, 1M
Resistive Material	Conductive Plastic	Conductive Plastic
Rotation	260 °	260 °
Size - Body	Round	Round
Size - Body [diameter]	17 mm	17 mm
Size - Body [diameter]	0.669 in	0.669 in
Taper	Linear	Linear, Logarithmic
Termination Style	Solder Lug	Solder Lug, PC Pins
Tolerance	20 %	20 %

P170N Series

POT 10K OHM 1/10W PLASTIC LINEAR

Part	Actuator Length [x]	Actuator Length [x]	Termination Style	Taper	Tolerance	Number of Turns	Resistance (Ohms)	Bushing Thread	Bushing Thread	Resistive Material	Number of Gangs	Rotation	Size - Body [diameter]	Size - Body	Size - Body [diameter]	Actuator Type	Adjustment Type	Power (Watts)	Power (Watts)	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Resistance (Ohms)	Actuator Length [z]	Actuator Length	Actuator Length [z]
TT Electronics/BI P170N-QC12BR10K	0.472 in	12 mm	Solder Lug	Linear	20 %	1	10k	0.75	M7	Conductive Plastic	1	260 °	17 mm	Round	0.669 in	Knurled and Slotted	User Defined	0.1 W	0.1 W	0.236 in	6 mm
TT Electronics/BI P170NP1-QC12BR5K	0.472 in	12 mm	PC Pins	Linear	20 %	1		0.75	M7	Conductive Plastic	1	260 °	17 mm	Round	0.669 in	Knurled and Slotted	Top Adjustment	0.1 W	0.1 W	0.236 in	6 mm	5 kOhms
TT Electronics/BI P170NP1-FD15BR500K			PC Pins	Linear	20 %	1		0.75	M7	Conductive Plastic	1	260 °	17 mm	Round	0.669 in	Flatted	Top Adjustment	0.1 W	0.1 W	0.236 in	6 mm	500 kOhms	0.591 in	15 mm
TT Electronics/BI P170NP1-FD15AR250K			PC Pins	Logarithmic	20 %	1	250k	0.75	M7	Conductive Plastic	1	260 °	17 mm	Round	0.669 in	Flatted	Top Adjustment	50 mW	0.05 W	0.236 in	6 mm		0.591 in	15 mm
TT Electronics/BI P170N2-QB20BR100K			PC Pins	Linear	20 %	1		0.75	M7	Conductive Plastic	1	260 °	17 mm	Round	0.669 in	Knurled and Slotted	Side Adjustment	0.1 W	0.1 W	0.236 in	6 mm	100 kOhms	0.787 in		20 mm
TT Electronics/BI P170N2-QC25BR1K	0.984 in	25 mm	PC Pins	Linear	20 %	1		0.75	M7	Conductive Plastic	1	260 °	17 mm	Round	0.669 in	Knurled and Slotted	Side Adjustment	0.1 W	0.1 W	0.236 in	6 mm	1 kOhms
TT Electronics/BI P170N2-FC15B20K			PC Pins	Linear	20 %	1		0.75	M7	Conductive Plastic	1	260 °	17 mm	Round	0.669 in	Flatted	Side Adjustment	0.1 W	0.1 W	0.236 in	6 mm	20 kOhms	0.591 in	15 mm
TT Electronics/BI P170N-QC20BR500			Solder Lug	Linear	20 %	1		0.75	M7	Conductive Plastic	1	260 °	17 mm	Round	0.669 in	Knurled and Slotted	User Defined	0.1 W	0.1 W	0.236 in	6 mm	500 Ohms	0.787 in		20 mm
TT Electronics/BI P170NPD-FC10AR10K	0.394 in	10 mm	PC Pins	Logarithmic	20 %	1	10k	0.75	M7	Conductive Plastic	1	260 °	17 mm	Round	0.669 in	Flatted	Rear Adjustment	50 mW	0.05 W	0.236 in	6 mm
TT Electronics/BI P170NP1-FD15BR100K			PC Pins	Linear	20 %	1		0.75	M7	Conductive Plastic	1	260 °	17 mm	Round	0.669 in	Flatted	Top Adjustment	0.1 W	0.1 W	0.236 in	6 mm	100 kOhms	0.591 in	15 mm
