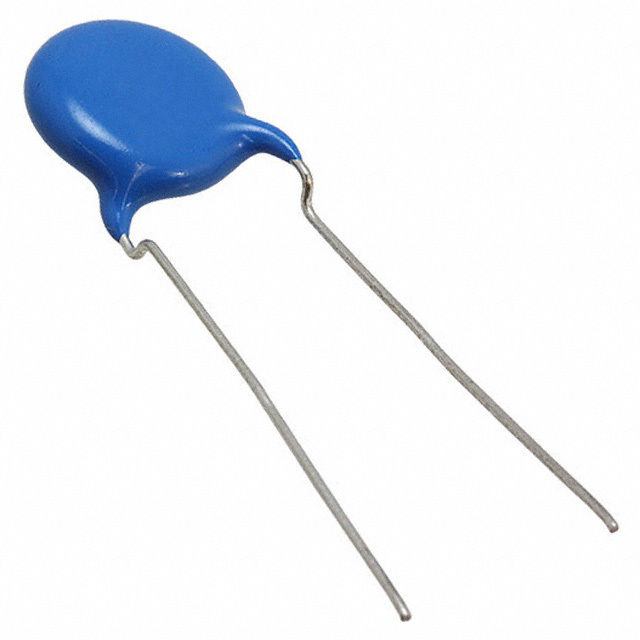

C721U102MTWDBA7317 - C900 13mm

C721U102MTWDBA7317

Active
KEMET

CERAMIC SUPPRESSION CAPACITOR, 1000 PF, ± 20%, X1 / Y1, 440 V, 250 V, RADIAL LEADED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet ENDatasheet+2
C721U102MTWDBA7317 - C900 13mm

C721U102MTWDBA7317

Active
KEMET

CERAMIC SUPPRESSION CAPACITOR, 1000 PF, ± 20%, X1 / Y1, 440 V, 250 V, RADIAL LEADED

Deep-Dive with AI

DocumentsTechnical Data Sheet ENDatasheet+2

Technical Specifications

Parameters and characteristics for this part

SpecificationC721U102MTWDBA7317
ApplicationsSafety
Capacitance0.001 µF
Height - Seated (Max) [Max] [z]13 mm
Height - Seated (Max) [Max] [z]0.512 "
Lead Spacing0.394 in
Lead Spacing10 mm
Lead StyleStraight
Mounting TypeThrough Hole
Operating Temperature [Max]85 °C
Operating Temperature [Min]-25 °C
Package / CaseDisc, Radial
RatingsY1, X1
Size / Dimension [diameter]9 mm
Size / Dimension [diameter]0.354 in
Temperature CoefficientY5U (E)
Tolerance20 %
Voltage - Rated440 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 0.46
10$ 0.32
50$ 0.27
100$ 0.22
500$ 0.18
Tape & Box (TB) 1000$ 0.17
NewarkEach 2500$ 0.19

Description

General part information

C721U Series

1000 pF ±20% 440VAC Ceramic Capacitor Y5U (E) Radial, Disc
