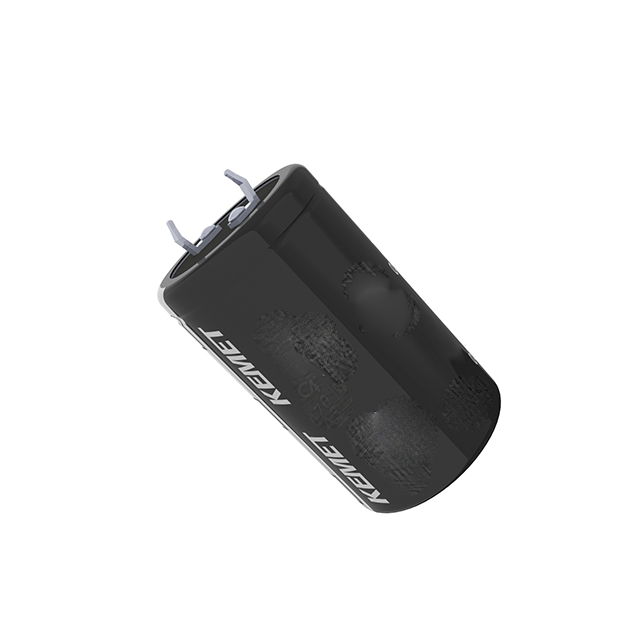

ELG109M025AQ4AA

Active

KEMET

CAP ALUM 10000UF 20% 25V SNAP TH

Search across all available documentation for this part.

Active

KEMET

CAP ALUM 10000UF 20% 25V SNAP TH

Technical Specifications

Parameters and characteristics for this part

Specification	ELG109M025AQ4AA

Applications	General Purpose
Capacitance	10000 µF
Height - Seated (Max) [Max]	42 mm
Height - Seated (Max) [Max]	1.654 in
Lead Spacing	0.394 in
Lead Spacing	10 mm
Lifetime @ Temp.	2000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can - Snap-In
Polarization	Polar
Ripple Current @ High Frequency	2.784 A
Ripple Current @ Low Frequency	2.4 A
Size / Dimension [diameter]	22 mm
Size / Dimension [diameter]	0.866 in
Tolerance	20 %
Voltage - Rated	25 VDC

Part	Ripple Current @ Low Frequency	Lead Spacing	Lead Spacing	Ripple Current @ High Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Applications	Tolerance	Voltage - Rated	Polarization	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lifetime @ Temp.	Package / Case
KEMET ELG109M025AQ4AA	2.4 A	0.394 in	10 mm	2.784 A	-40 °C	105 ░C	10000 µF	General Purpose	20 %	25 VDC	Polar	22 mm	0.866 in	Through Hole	42 mm	1.654 in	2000 Hrs	Radial Can - Snap-In

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10000 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C

Technical documentation and resources
