37216-62M3-004PL

Active

3M (TC)

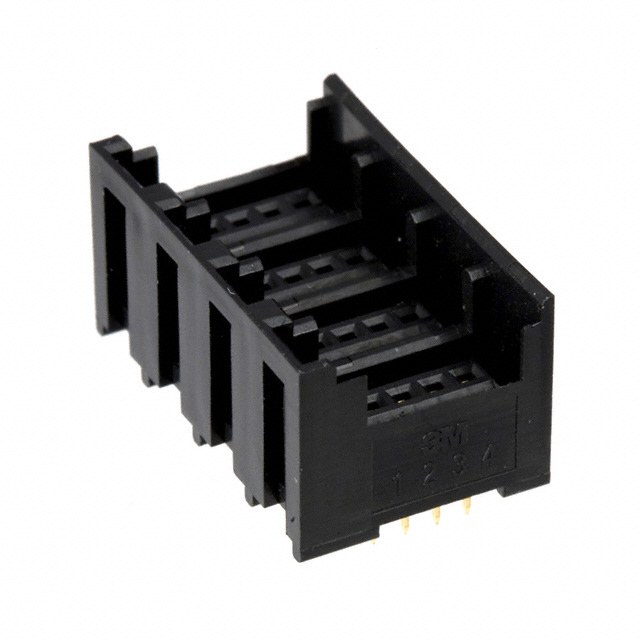

PCB RECEPTACLE, WIRE-TO-BOARD, 2 MM, 1 ROWS, 16 CONTACTS, THROUGH HOLE MOUNT

Search across all available documentation for this part.

Active

3M (TC)

PCB RECEPTACLE, WIRE-TO-BOARD, 2 MM, 1 ROWS, 16 CONTACTS, THROUGH HOLE MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	37216-62M3-004PL

Applications	Automotive, Medical, General Purpose, Lighting, Industrial
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Finish Thickness - Post	Flash
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Latch Holder
Insulation Color	Black
Insulation Height	13 mm
Insulation Height	0.512 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	16
Number of Positions Loaded	All
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	6.5 mm
Row Spacing - Mating	0.256 in
Style	Board to Cable/Wire
Termination	Solder, Press-Fit
Voltage Rating	32 V

Part	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Insulation Height	Insulation Height	Insulation Color	Voltage Rating	Contact Finish - Post	Contact Finish - Mating	Contact Shape	Contact Type	Contact Finish Thickness - Post	Row Spacing - Mating	Row Spacing - Mating	Applications	Number of Positions	Contact Material	Termination	Current Rating (Amps)	Style	Fastening Type	Insulation Material	Number of Positions Loaded	Pitch - Mating [x]	Pitch - Mating [x]	Mounting Type
3M (TC) 37216-62M3-004PL	UL94 V-0	0.203 Ám	8 Áin	Receptacle	13 mm	0.512 in	Black	32 V	Gold	Gold	Square	Female Socket	Flash	6.5 mm	0.256 in	Automotive General Purpose Industrial Lighting Medical	16	Copper Alloy	Press-Fit Solder	3 A	Board to Cable/Wire	Latch Holder	Liquid Crystal Polymer (LCP)	All	0.079 in	2 mm	Through Hole
3M (TC) 37216-62M3-004SC	UL94 V-0	0.203 Ám	8 Áin	Receptacle	13 mm	0.512 in	Black	32 V	Gold	Gold	Square	Female Socket	Flash	6.5 mm	0.256 in	Automotive General Purpose Industrial Lighting Medical	16	Copper Alloy	Press-Fit Solder	3 A	Board to Cable/Wire	Latch Holder	Liquid Crystal Polymer (LCP)	All	0.079 in	2 mm	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

16 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
