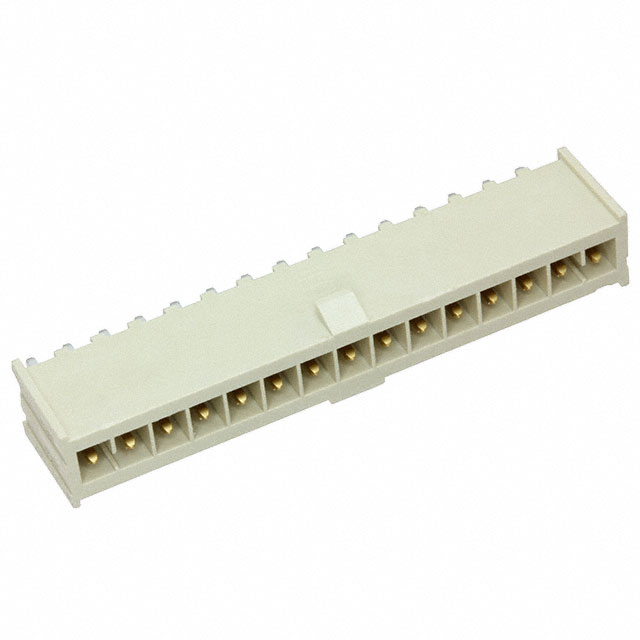

IPL1-115-01-L-S-K

Active

Samtec Inc.

HEADERS & WIRE HOUSINGS .100" MINI MATE ISOLATED POWER TERMINAL HEADER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet IPD1 Series Other Related Documents 03 +3

IPL1-115-01-L-S-K

Active

Samtec Inc.

HEADERS & WIRE HOUSINGS .100" MINI MATE ISOLATED POWER TERMINAL HEADER

Deep-Dive with AI

DocumentsDatasheet IPD1 Series Other Related Documents 03 +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IPL1-115-01-L-S-K

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating	5.46 mm
Contact Length - Mating	0.215 in
Contact Length - Post [x]	0.12 in
Contact Length - Post [x]	3.05 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height	8.13 mm
Insulation Height	0.32 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	15
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	954 VDC, 675 VAC

IPL1-115 Series

Headers & Wire Housings .100" Mini Mate Isolated Power Terminal Header

Part	Contact Material	Contact Type	Number of Positions	Contact Shape	Material Flammability Rating	Insulation Material	Contact Finish - Mating	Insulation Color	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Shrouding	Number of Positions Loaded	Fastening Type	Mounting Type	Connector Type	Contact Finish - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Voltage Rating	Termination	Number of Rows	Style	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Features
Samtec Inc. IPL1-115-02-F-D-K	Phosphor Bronze	Male Pin	30	Square	UL94 V-0	Liquid Crystal Polymer (LCP)	Gold	Natural	5.46 mm	0.215 in	3 µin	0.076 µm	0.1 in	2.54 mm	Shrouded - 4 Wall	All	Locking Ramp	Surface Mount	Header	Tin	2.54 mm	0.1 in	675 VAC 954 VDC	Solder	2	Board to Cable/Wire	8.13 mm	0.32 in	-55 °C	125 °C
Samtec Inc. IPL1-115-01-S-D-RA-P	Phosphor Bronze	Male Pin	30	Square	UL94 V-0	Liquid Crystal Polymer (LCP)	Gold	Natural	5.46 mm	0.215 in	30 Áin	0.76 Ám	0.1 in	2.54 mm	Shrouded - 4 Wall	All	Locking Ramp	Through Hole Right Angle	Header	Tin	2.54 mm	0.1 in	675 VAC 954 VDC	Solder	2	Board to Cable/Wire	7.37 mm	0.29 in	-55 °C	125 °C	2.16 mm	0.085 in
Samtec Inc. IPL1-115-01-L-S-K	Phosphor Bronze	Male Pin	15	Square	UL94 V-0	Liquid Crystal Polymer (LCP)	Gold	Natural	5.46 mm	0.215 in	10 çin	0.25 çm	0.1 in	2.54 mm	Shrouded - 4 Wall	All	Locking Ramp	Through Hole	Header	Tin			675 VAC 954 VDC	Solder	1	Board to Cable/Wire	8.13 mm	0.32 in	-55 °C	125 °C			0.12 in	3.05 mm
Samtec Inc. IPL1-115-02-S-D-P	Phosphor Bronze	Male Pin	30	Square	UL94 V-0	Liquid Crystal Polymer (LCP)	Gold	Natural	5.46 mm	0.215 in	30 Áin	0.76 Ám	0.1 in	2.54 mm	Shrouded - 4 Wall	All	Locking Ramp	Surface Mount	Header	Tin	2.54 mm	0.1 in	675 VAC 954 VDC	Solder	2	Board to Cable/Wire	8.13 mm	0.32 in	-55 °C	125 °C
Samtec Inc. IPL1-115-02-H-D-K	Phosphor Bronze	Male Pin	30	Square	UL94 V-0	Liquid Crystal Polymer (LCP)	Gold	Natural	5.46 mm	0.215 in	30 Áin	0.76 Ám	0.1 in	2.54 mm	Shrouded - 4 Wall	All	Locking Ramp	Surface Mount	Header	Gold	2.54 mm	0.1 in	675 VAC 954 VDC	Solder	2	Board to Cable/Wire	8.13 mm	0.32 in	-55 °C	125 °C					3 µin	0.076 µm
Samtec Inc. IPL1-115-01-STL-D-RA-K	Phosphor Bronze	Male Pin	30	Square	UL94 V-0	Liquid Crystal Polymer (LCP)	Gold	Natural	5.46 mm	0.215 in	30 Áin	0.76 Ám	0.1 in	2.54 mm	Shrouded - 4 Wall	All	Locking Ramp	Through Hole Right Angle	Header	Tin	2.54 mm	0.1 in	675 VAC 954 VDC	Solder	2	Board to Cable/Wire	7.37 mm	0.29 in	-55 °C	125 °C	2.16 mm	0.085 in
Samtec Inc. IPL1-115-02-S-D-K-TR	Phosphor Bronze	Male Pin	30	Square	UL94 V-0	Liquid Crystal Polymer (LCP)	Gold	Natural	5.46 mm	0.215 in	30 Áin	0.76 Ám	0.1 in	2.54 mm	Shrouded - 4 Wall	All	Locking Ramp	Surface Mount	Header	Tin	2.54 mm	0.1 in	675 VAC 954 VDC	Solder	2	Board to Cable/Wire	8.13 mm	0.32 in	-55 °C	125 °C
Samtec Inc. IPL1-115-02-F-SH-K	Phosphor Bronze	Male Pin	15	Square	UL94 V-0	Liquid Crystal Polymer (LCP)	Gold	Natural	5.46 mm	0.215 in	3 µin	0.076 µm	0.1 in	2.54 mm	Shrouded - 4 Wall	All	Locking Ramp	Surface Mount Right Angle	Header	Tin			675 VAC 954 VDC	Solder	1	Board to Cable/Wire	5.6 mm	0.22 in	-55 °C	125 °C							Board Guide
Samtec Inc. IPL1-115-02-L-S-K-TR	Phosphor Bronze	Male Pin	15	Square	UL94 V-0	Liquid Crystal Polymer (LCP)	Gold	Natural	5.46 mm	0.215 in	10 çin	0.25 çm	0.1 in	2.54 mm	Shrouded - 4 Wall	All	Locking Ramp	Surface Mount	Header	Tin			675 VAC 954 VDC	Solder	1	Board to Cable/Wire	8.13 mm	0.32 in	-55 °C	125 °C
Samtec Inc. IPL1-115-02-L-D-P	Phosphor Bronze	Male Pin	30	Square	UL94 V-0	Liquid Crystal Polymer (LCP)	Gold	Natural	5.46 mm	0.215 in	10 çin	0.25 çm	0.1 in	2.54 mm	Shrouded - 4 Wall	All	Locking Ramp	Surface Mount	Header	Tin	2.54 mm	0.1 in	675 VAC 954 VDC	Solder	2	Board to Cable/Wire	8.13 mm	0.32 in	-55 °C	125 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 3.23
		25	$ 2.81
		50	$ 2.55
		100	$ 2.22
		500	$ 1.96
Sager	N/A	1	$ 3.23
		25	$ 2.81
		50	$ 2.55
		100	$ 2.22
		500	$ 1.92
		1000	$ 1.64
		2500	$ 1.42
		5000	$ 1.22

Description

General part information

IPL1-115 Series

Headers & Wire Housings .100" Mini Mate Isolated Power Terminal Header
