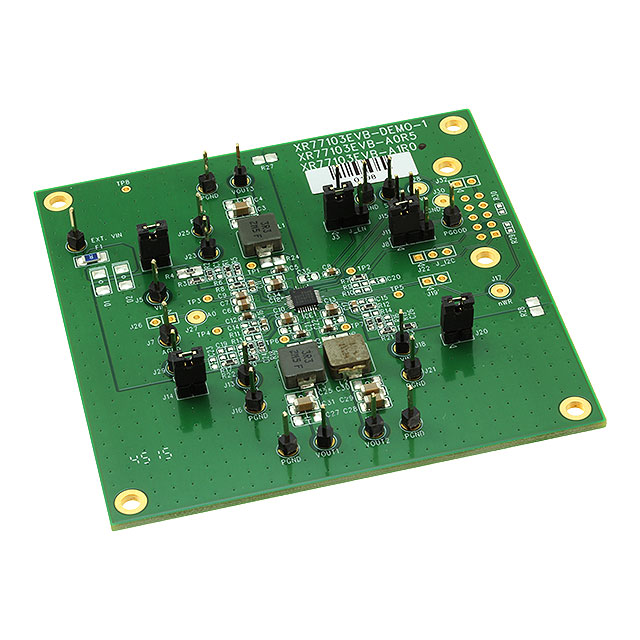

XR77103EVB-A1R0

Active

MaxLinear, Inc.

EVAL BOARD FOR XR77103-A1R0

Deep-Dive with AI

Search across all available documentation for this part.

XR77103EVB-A1R0

Active

MaxLinear, Inc.

EVAL BOARD FOR XR77103-A1R0

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	3	$ 50.50

Description

General part information

XR77103 Series

XR77103-A1R0 - DC/DC, Step Down 3, Non-Isolated Outputs Evaluation Board

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XR77103EVB-A1R0	XR77103 Series

Board Type	Fully Populated	Fully Populated
Current - Output	2 A	2 A
Frequency - Switching	1 MHz	1 - 500 MHz
Frequency - Switching	-	300 kHz
Frequency - Switching	-	2.2 MHz
Function	-	Step-Down
Main Purpose	DC/DC, Step Down	DC/DC, Step Down
Mounting Type	-	Surface Mount
Number of Outputs	-	3
Operating Temperature	-	-40 °C
Operating Temperature	-	125 ¯C
Output Configuration	-	Positive
Output Type	-	Adjustable (Fixed), Adjustable
Outputs and Type	Non-Isolated	Non-Isolated
Outputs and Type	3	3
Package / Case	-	32-VFQFN Exposed Pad
Regulator Topology	Buck	Buck
Supplied Contents	Board(s)	Board(s)
Supplier Device Package	-	32-TQFN (4x4)
Synchronous Rectifier	-	True
Topology	-	Buck
Utilized IC / Part	XR77103-A1R0	XR77103-A1R0, XR77103
Voltage - Input (Max)	-	14 V
Voltage - Input (Min)	-	4.5 V
Voltage - Output (Max)	-	13.3 V
Voltage - Output (Min/Fixed)	-	0.8 V
Voltage - Output (Min/Fixed)	-	9 V
Voltage - Output (Min/Fixed)	-	12 V
Voltage - Output (Min/Fixed)	-	5 V
Voltage - Output [Max]	6 VDC	6 VDC
Voltage - Output [Min]	0.8 V	0.8 V

XR77103 Series

EVAL BOARD FOR XR77103-A1R0

Part	Current - Output	Board Type	Outputs and Type	Outputs and Type	Voltage - Output [Min]	Voltage - Output [Max]	Supplied Contents	Frequency - Switching	Utilized IC / Part	Main Purpose	Regulator Topology	Package / Case	Voltage - Input (Min) [Min]	Supplier Device Package	Output Type	Output Configuration	Topology	Voltage - Output (Min/Fixed)	Voltage - Output (Min/Fixed)	Voltage - Output (Min/Fixed)	Voltage - Output (Min/Fixed)	Mounting Type	Voltage - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Voltage - Input (Max) [Max]	Function	Frequency - Switching [Min]	Frequency - Switching [Max]
MaxLinear, Inc. XR77103EVB-A1R0	2 A	Fully Populated	Non-Isolated	3	0.8 V	6 VDC	Board(s)	1 MHz	XR77103-A1R0	DC/DC, Step Down	Buck
MaxLinear, Inc. XR77103EVB-DEMO-1		Fully Populated	Non-Isolated	3	0.8 V	6 VDC	Board(s)		XR77103	DC/DC, Step Down	Buck
MaxLinear, Inc. XR77103ELBTR-A0R5	2 A							500 kHz				32-VFQFN Exposed Pad	4.5 V	32-TQFN (4x4)	Adjustable (Fixed)	Positive	Buck	0.8 V	9 V	12 V	5 V	Surface Mount	13.3 V	-40 °C	125 ¯C	3	14 V	Step-Down
MaxLinear, Inc. XR77103ELBTR-A1R0	2 A							1 MHz				32-VFQFN Exposed Pad	4.5 V	32-TQFN (4x4)	Adjustable (Fixed)	Positive	Buck	0.8 V	9 V	12 V	5 V	Surface Mount	13.3 V	-40 °C	125 ¯C	3	14 V	Step-Down
MaxLinear, Inc. XR77103ELB-A0R5	2 A							500 kHz				32-VFQFN Exposed Pad	4.5 V	32-TQFN (4x4)	Adjustable (Fixed)	Positive	Buck	0.8 V	9 V	12 V	5 V	Surface Mount	13.3 V	-40 °C	125 ¯C	3	14 V	Step-Down
MaxLinear, Inc. XR77103ELBTR	2 A											32-VFQFN Exposed Pad	4.5 V	32-TQFN (4x4)	Adjustable	Positive	Buck	0.8 V				Surface Mount		-40 °C	125 ¯C	3	14 V	Step-Down	300 kHz	2.2 MHz
MaxLinear, Inc. XR77103ELB-A1R0	2 A							1 MHz				32-VFQFN Exposed Pad	4.5 V	32-TQFN (4x4)	Adjustable (Fixed)	Positive	Buck	0.8 V	9 V	12 V	5 V	Surface Mount	13.3 V	-40 °C	125 ¯C	3	14 V	Step-Down
