145-0701-212

Active

Cinch Connectivity Solutions Johnson

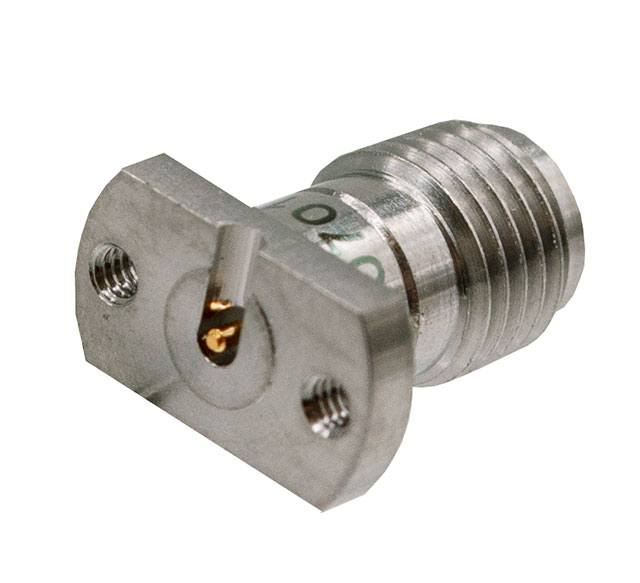

CONN 2.92MM JACK STR 50OHM 40GHZ

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Johnson

CONN 2.92MM JACK STR 50OHM 40GHZ

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2.92mm Connector Jack, Female Socket 50 Ohms Panel Mount Compression

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	145-0701-212	145-0701 Series

Body Finish	-	Gold
Body Material	Stainless Steel	Stainless Steel, Brass
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Connector Style	2.92 mm	2.92 mm
Connector Type	Female Socket, Jack	Female Socket, Jack
Contact Termination	Compression	Compression, Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Features	Mounting Hardware	Mounting Hardware
Frequency - Max [Max]	40 GHz	40 GHz
Housing Color	Silver	Silver, Gold
Impedance	50 Ohms	50 Ohms
Mating Cycles	500	500
Mounting Feature	Flange	Flange
Mounting Type	-	Through Hole, Surface Mount, 45° Angle
Number of Ports	1	1
Operating Temperature [Max]	125 °C	85 - 125 °C
Operating Temperature [Min]	-55 °C	-55 - -40 °C
Shield Termination	Screw	Screw, Solder
Voltage Rating	-	250 VDC

CONN 2.92MM JACK STR 50OHM 40GHZ

Part	Center Contact Plating	Impedance	Connector Type	Mating Cycles	Housing Color	Dielectric Material	Connector Style	Shield Termination	Frequency - Max [Max]	Center Contact Material	Features	Mounting Feature	Number of Ports	Contact Termination	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Body Finish	Mounting Type	Voltage Rating
Cinch Connectivity Solutions Johnson 145-0701-202	Gold	50 Ohms	Female Socket, Jack	500	Silver	Polytetrafluoroethylene (PTFE)	2.92 mm	Screw	40 GHz	Beryllium Copper	Mounting Hardware	Flange	1	Compression	Stainless Steel	-55 °C	125 °C
Cinch Connectivity Solutions Johnson 145-0701-212	Gold	50 Ohms	Female Socket, Jack	500	Silver	Polytetrafluoroethylene (PTFE)	2.92 mm	Screw	40 GHz	Beryllium Copper	Mounting Hardware	Flange	1	Compression	Stainless Steel	-55 °C	125 °C
Cinch Connectivity Solutions Johnson 145-0701-221	Gold	50 Ohms	Female Socket, Jack	500	Gold	Polytetrafluoroethylene (PTFE)	2.92 mm	Solder	40 GHz	Beryllium Copper	Mounting Hardware		1	Solder	Brass	-40 °C	85 °C	Gold	Surface Mount, 45° Angle, Through Hole	250 VDC
