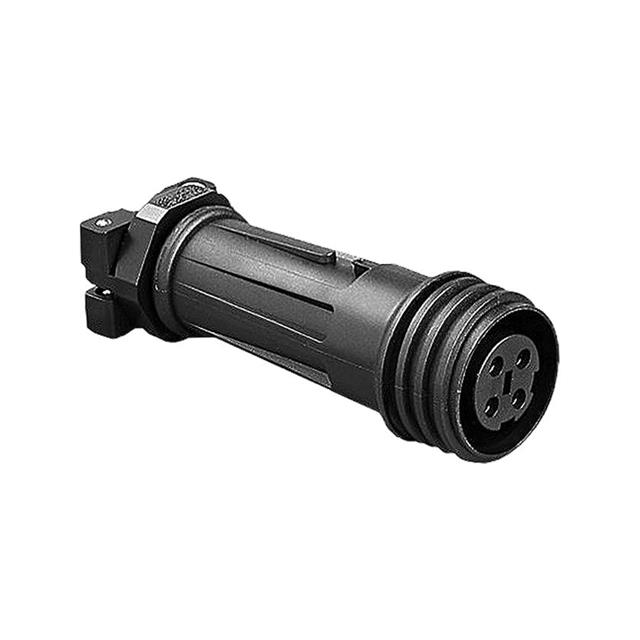

EXP-A921/05/S

Active

BULGIN LIMITED

CONN RCPT FMALE 5P NICKEL SCREW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EXP-A921/05/S

Active

BULGIN LIMITED

CONN RCPT FMALE 5P NICKEL SCREW

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EXP-A921/05/S

Applications	Industrial
Backshell Material, Plating	Polyester
Cable Opening [Max] [custom]	0.866 in, 22 mm
Cable Opening [Min] [custom]	0.787 in, 20 mm
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Nickel
Contact Material	Brass
Current Rating (Amps)	18 A
Features	UV Resistant, Trailing Neutral, Cable Clamp, Backshell
Ingress Protection	IP68 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	5
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Polyester
Shielding	Unshielded
Termination	Screw
Voltage Rating	600 VAC

EXP-A921 Series

Part	Features	Mounting Type	Number of Positions	Ingress Protection	Current Rating (Amps)	Backshell Material, Plating	Primary Material	Contact Finish - Mating	Material Flammability Rating	Shell Material	Orientation	Voltage Rating	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Color	Termination	Connector Type	Contact Material	Applications	Shielding	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]
BULGIN LIMITED EXP-A921/02/P	Backshell Cable Clamp UV Resistant	Free Hanging (In-Line)	2	IP68 - Dust Tight Waterproof	18 A	Polyester	Plastic	Nickel	UL94 V-0	Polyester	Keyed	600 VAC	0.787 in 20 mm	0.866 in 22 mm	55 °C	-20 C	Black	Screw	Male Pins Receptacle	Brass	Industrial	Unshielded
BULGIN LIMITED EXP-A921/05/S	Backshell Cable Clamp Trailing Neutral UV Resistant	Free Hanging (In-Line)	5	IP68 - Dust Tight Waterproof	18 A	Polyester	Plastic	Nickel	UL94 V-0	Polyester	Keyed	600 VAC	0.787 in 20 mm	0.866 in 22 mm	55 °C	-20 C	Black	Screw	Receptacle Female Sockets	Brass	Industrial	Unshielded
BULGIN LIMITED EXP-A921/10/P	Backshell Cable Clamp UV Resistant	Free Hanging (In-Line)	10	IP68 - Dust Tight Waterproof	10 A	Polyester	Plastic	Nickel	UL94 V-0	Polyester	Keyed	250 VAC	0.787 in 20 mm	0.866 in 22 mm	55 °C	-20 C	Black	Screw	Male Pins Receptacle	Brass	Industrial	Unshielded
BULGIN LIMITED EXP-A921/03/S	Backshell Cable Clamp UV Resistant	Free Hanging (In-Line)		IP68 - Dust Tight Waterproof	18 A	Polyester	Plastic	Nickel	UL94 V-0	Polyester	Keyed	600 VAC	0.787 in 20 mm	0.866 in 22 mm	55 °C	-20 C	Black	Screw	Receptacle Female Sockets	Brass	Industrial	Unshielded	3	1	2
BULGIN LIMITED EXP-A921/03/P	Backshell Cable Clamp UV Resistant	Free Hanging (In-Line)		IP68 - Dust Tight Waterproof	18 A	Polyester	Plastic	Nickel	UL94 V-0	Polyester	Keyed	600 VAC	0.787 in 20 mm	0.866 in 22 mm	55 °C	-20 C	Black	Screw	Male Pins Receptacle	Brass	Industrial	Unshielded	3	1	2
BULGIN LIMITED EXP-A921/10/S	Backshell Cable Clamp UV Resistant	Free Hanging (In-Line)	10	IP68 - Dust Tight Waterproof	10 A	Polyester	Plastic	Nickel	UL94 V-0	Polyester	Keyed	250 VAC	0.787 in 20 mm	0.866 in 22 mm	55 °C	-20 C	Black	Screw	Receptacle Female Sockets	Brass	Industrial	Unshielded
BULGIN LIMITED EXP-A921/07/P	Backshell Cable Clamp UV Resistant	Free Hanging (In-Line)	7	IP68 - Dust Tight Waterproof	16 A	Polyester	Plastic	Nickel	UL94 V-0	Polyester	Keyed	430 VAC/DC	0.787 in 20 mm	0.866 in 22 mm	55 °C	-20 C	Black	Screw	Male Pins Receptacle	Brass	Industrial	Unshielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20	$ 77.69
Newark	Each	1	$ 127.84

Description

General part information

EXP-A921 Series

5 (4 Power + PE) Position Circular Connector Receptacle, Female Sockets Screw
