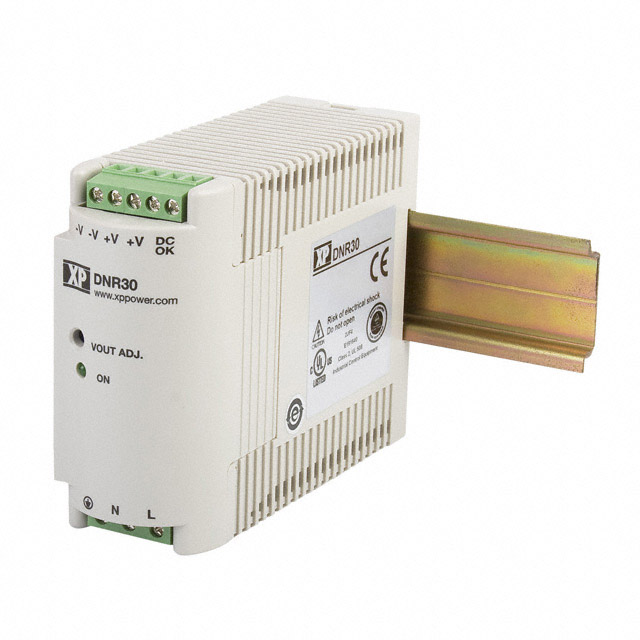

DNR30US12-S

Obsolete

XP POWER

AC/DC DIN RAIL SUPPLY 12V 30W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet DNR(05 - 60) Series TUV Certificate +2

DNR30US12-S

Obsolete

XP POWER

AC/DC DIN RAIL SUPPLY 12V 30W

Deep-Dive with AI

DocumentsDatasheet DNR(05 - 60) Series TUV Certificate +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DNR30US12-S

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	90 VAC
Applications	ITE (Commercial), Industrial, Hazardous Locations
Approval Agency	CE
Current - Output (Max) [Max]	2.5 A
DC Voltage - Input (Max) [Max]	375 V
DC Voltage - Input (Min) [Min]	90 V
Efficiency	84 %
Features	Adjustable Output, Universal Input
Input Type	AC or DC
Minimum Load Required	False
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	30 W
Size / Dimension [x]	4.53 "
Size / Dimension [x]	115 mm
Size / Dimension [y]	40.5 mm
Size / Dimension [y]	1.59 "
Size / Dimension [z]	3.54 "
Size / Dimension [z]	90 mm
Standard Number	62368-1
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

DNR30 Series

Part	Voltage - Isolation	DC Voltage - Input (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Efficiency	Applications	Features	DC Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Number of Outputs	Approval Agency	Standard Number	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Input Type
XP POWER DNR30US24	3000 V	90 V	-20 °C	70 °C	30 W	24 V	4.53 "	40.5 mm	115 mm	3.54 "	90 mm	1.59 "	86 %	Hazardous Locations Industrial ITE (Commercial)	Adjustable Output Universal Input	375 V	1.25 A	1	CE	62368-1	90 VAC	264 VAC	AC or DC
XP POWER DNR30US48	3000 V	90 V	-20 °C	70 °C	30 W	48 V	4.53 "	40.5 mm	115 mm	3.54 "	90 mm	1.59 "	86 %	Hazardous Locations Industrial ITE (Commercial)	Adjustable Output Universal Input	375 V	625 mA	1	CE	62368-1	90 VAC	264 VAC	AC or DC
XP POWER DNR30US12	3000 V	90 V	-20 °C	70 °C	30 W	12 V	4.53 "	40.5 mm	115 mm	3.54 "	90 mm	1.59 "	84 %	Hazardous Locations Industrial ITE (Commercial)	Adjustable Output Universal Input	375 V	2.5 A	1	CE	62368-1	90 VAC	264 VAC	AC or DC
XP POWER DNR30US12-S	3000 V	90 V	-20 °C	70 °C	30 W	12 V	4.53 "	40.5 mm	115 mm	3.54 "	90 mm	1.59 "	84 %	Hazardous Locations Industrial ITE (Commercial)	Adjustable Output Universal Input	375 V	2.5 A	1	CE	62368-1	90 VAC	264 VAC	AC or DC
XP POWER DNR30US05	3000 V	90 V	-20 °C	70 °C	30 W	5 V	4.53 "	40.5 mm	115 mm	3.54 "	90 mm	1.59 "	79 %	Hazardous Locations Industrial ITE (Commercial)	Adjustable Output Universal Input	375 V	6 A	1	CE	62368-1	90 VAC	264 VAC	AC or DC
