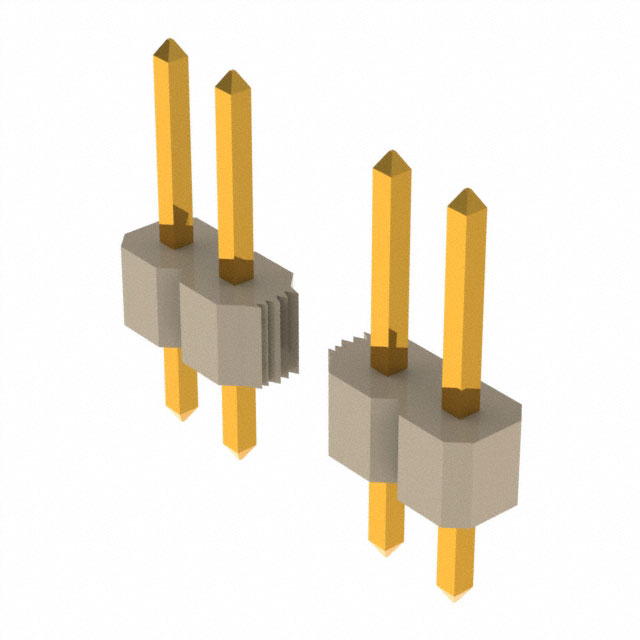

YMC25SAAN

Obsolete

Sullins Connector Solutions

CONN HEADER VERT 25POS 2.54MM

Search across all available documentation for this part.

Obsolete

Sullins Connector Solutions

CONN HEADER VERT 25POS 2.54MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	YMC25SAAN	YMC25 Series

Connector Type	Breakaway, Header	Breakaway, Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Gold
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	10 çin	10 çin
Contact Finish Thickness - Post	0.25 çm	0.25 çm
Contact Length - Mating	5.84 mm	5.84 mm
Contact Length - Mating [x]	0.23 in	0.23 in
Contact Length - Post [x]	0.12 in	0.12 in
Contact Length - Post [x]	3.05 mm	3.05 mm
Contact Material	Beryllium Copper	Beryllium Copper
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	3 A	3 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Tan	Tan
Insulation Height	0.1 in	0.1 in
Insulation Height	2.54 mm	2.54 mm
Insulation Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	-	50
Number of Positions Loaded	All	All
Number of Rows	1	1 - 2
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Overall Contact Length	0.45 "	0.45 "
Overall Contact Length	11.43 mm	11.43 mm
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating	-	2.54 mm
Row Spacing - Mating	-	0.1 in
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

CONN HEADER VERT 25POS 2.54MM

Part	Mounting Type	Material Flammability Rating	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Shrouding	Insulation Height	Insulation Height	Number of Rows	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Style	Termination	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Mating [x]	Contact Length - Mating	Number of Positions Loaded	Fastening Type	Insulation Color	Overall Contact Length	Overall Contact Length	Contact Finish - Post	Connector Type	Contact Shape	Insulation Material	Contact Finish - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions
Sullins Connector Solutions YMC25SAAN	Through Hole	UL94 V-0	Beryllium Copper	30 Áin	0.76 Ám	3 A	Unshrouded	0.1 in	2.54 mm	1	10 çin	0.25 çm	0.1 in	2.54 mm	0.12 in	3.05 mm	Board to Board, Cable	Solder	Male Pin	-65 ░C	250 °C	0.23 in	5.84 mm	All	Push-Pull	Tan	0.45 "	11.43 mm	Gold	Breakaway, Header	Square	Polyetheretherketone (PEEK)	Gold
Sullins Connector Solutions YMC25DAAN	Through Hole	UL94 V-0	Beryllium Copper	30 Áin	0.76 Ám	3 A	Unshrouded	0.1 in	2.54 mm	2	10 çin	0.25 çm	0.1 in	2.54 mm	0.12 in	3.05 mm	Board to Board, Cable	Solder	Male Pin	-65 ░C	250 °C	0.23 in	5.84 mm	All	Push-Pull	Tan	0.45 "	11.43 mm	Gold	Breakaway, Header	Square	Polyetheretherketone (PEEK)	Gold	2.54 mm	0.1 in	50

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Connector Header Through Hole 25 position 0.100" (2.54mm)
