MTC100-JH1-P22

Active

TE Connectivity Raychem Cable Protection

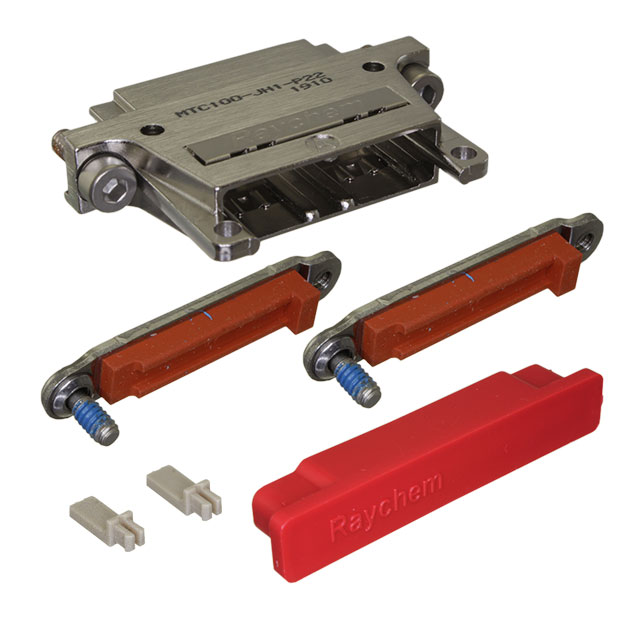

MTC100 CONNECTOR SHELL 10POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MTC100-JH1-P22

Active

TE Connectivity Raychem Cable Protection

MTC100 CONNECTOR SHELL 10POS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MTC100-JH1-P22

Accessory Type	Backshell
For Use With/Related Products	MTC Series

MTC100 Series

Part	Current Rating (Amps)	Style	Insulation Color	Material Flammability Rating	Mounting Type	Insulation Material	Contact Shape	Termination	Contact Finish - Mating	Number of Positions Loaded	Number of Rows	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Contact Material	Shrouding	Features	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post [x]	Contact Length - Post	Connector Type	For Use With/Related Products	Accessory Type	Cable Termination	Contact Finish	Wire Type	Wire Gauge [Min]	Wire Gauge [Max]	Color	Pitch [x]	Pitch [x]	Contact Length - Post	Insulation Height [z]	Insulation Height [z]
TE Connectivity Raychem Cable Protection MTC100-BJ1-P22	Varies by Wire Gauge	Board to Cable/Wire	Black	UL94 V-0	Panel Mount Through Hole	Aluminum Alloy	Rectangular	Solder	Gold	All	2	Male Pin	125 °C	-65 ░C	20	Copper Alloy	Shrouded - 4 Wall	Dust Cap	0.1 in	2.54 mm	2.54 mm	0.1 in	0.24 in	6.1 mm	Receptacle
TE Connectivity Raychem Cable Protection MTC100-JH2-R12																		Cable Clamp								MTC Series	Backshell
TE Connectivity Raychem Cable Protection MTC100-JA2-P34					Free Hanging (In-Line)						1	Male Pin			20													Crimp	Gold	Discrete
TE Connectivity Raychem Cable Protection MTC100-JA2-P11CS2684											1	Male Pin			10			Sealed										Solder		Discrete	20 AWG	26 AWG	Black	0.05 in	1.27 mm
TE Connectivity Raychem Cable Protection MTC100-BF2-P21	Varies by Wire Gauge	Board to Cable/Wire	Black	UL94 V-0	Panel Mount Through Hole	Aluminum Alloy	Rectangular	Wire Wrap		All	2	Male Pin	125 °C	-65 ░C	40	Copper Alloy	Shrouded - 4 Wall	Dust Cap Mounting Flange Mounting Hardware	0.1 in	2.54 mm	2.54 mm	0.1 in		14.73 mm	Receptacle											0.58 in
TE Connectivity Raychem Cable Protection MTC100-BJ1-P23	Varies by Wire Gauge	Board to Cable/Wire	Black	UL94 V-0	Panel Mount Right Angle Through Hole	Aluminum Alloy	Rectangular	Solder	Gold	All	2	Male Pin	125 °C	-65 ░C	20	Copper Alloy	Shrouded - 4 Wall	Dust Cap	0.1 in	2.54 mm	2.54 mm	0.1 in			Receptacle												9.7 mm	0.382 in
TE Connectivity Raychem Cable Protection MTC100Q-SH1-R22																		Cable Clamp								MTC Series	Backshell
TE Connectivity Raychem Cable Protection MTC100-JA2-S34					Free Hanging (In-Line)						1	Female Socket			20													Crimp	Gold	Discrete
TE Connectivity Raychem Cable Protection MTC100-JH1-P22																										MTC Series	Backshell
TE Connectivity Raychem Cable Protection MTC100-JA1-S34					Free Hanging (In-Line)						1	Female Socket			10													Crimp	Gold	Discrete

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 294.28
		10	$ 250.19
		25	$ 237.04

Description

General part information

MTC100 Series

Connector Backshell For MTC Series
