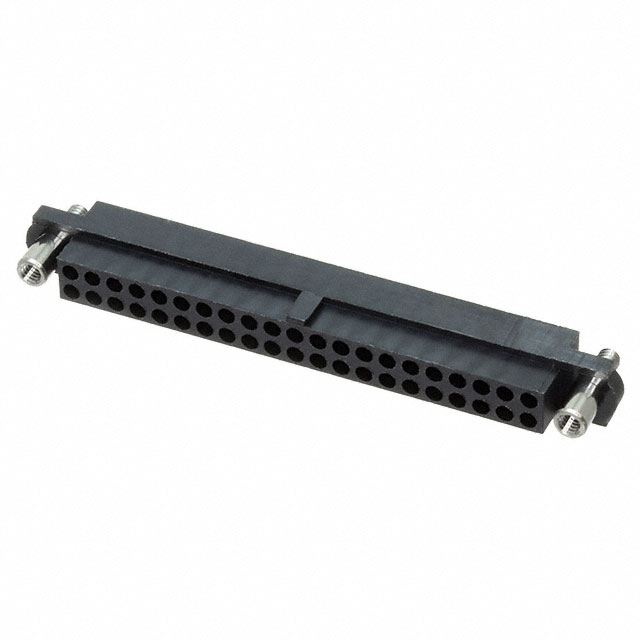

M80-4154298

Active

Harwin Inc.

21+21 POS. FEMALE DIL CABLE HOUSING, REVERSE FIX PANEL MOUNT ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

21+21 POS. FEMALE DIL CABLE HOUSING, REVERSE FIX PANEL MOUNT ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	M80-4154298

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Push-Pull
Features	Polarizing Key, Mounting Flange, Mating Flange
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Note	Contacts Not Included
Number of Positions	42
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Row Spacing	2 mm
Row Spacing	0.079 in

Part	Contact Type	Insulation Material	Note	Connector Type	Number of Rows	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Pitch [x]	Pitch [x]	Features	Color	Contact Termination	Row Spacing	Row Spacing
Harwin Inc. M80-4152098	Female Socket	Polyphenylene Sulfide (PPS) Glass Filled	Contacts Not Included	Receptacle	2	20	-55 °C	125 °C	Push-Pull	0.079 in	2 mm	Mating Flange Mounting Flange Polarizing Key	Black	Crimp	2 mm	0.079 in
Harwin Inc. M80-4154298	Female Socket	Polyphenylene Sulfide (PPS) Glass Filled	Contacts Not Included	Receptacle	2	42	-55 °C	125 °C	Push-Pull	0.079 in	2 mm	Mating Flange Mounting Flange Polarizing Key	Black	Crimp	2 mm	0.079 in
Harwin Inc. M80-4150698	Female Socket	Polyphenylene Sulfide (PPS) Glass Filled	Contacts Not Included	Receptacle	2	6	-55 °C	125 °C	Push-Pull	0.079 in	2 mm	Mating Flange Mounting Flange Polarizing Key	Black	Crimp	2 mm	0.079 in
Harwin Inc. M80-4151498	Female Socket	Polyphenylene Sulfide (PPS) Glass Filled	Contacts Not Included	Receptacle	2	14	-55 °C	125 °C	Push-Pull	0.079 in	2 mm	Mating Flange Mounting Flange Polarizing Key	Black	Crimp	2 mm	0.079 in
