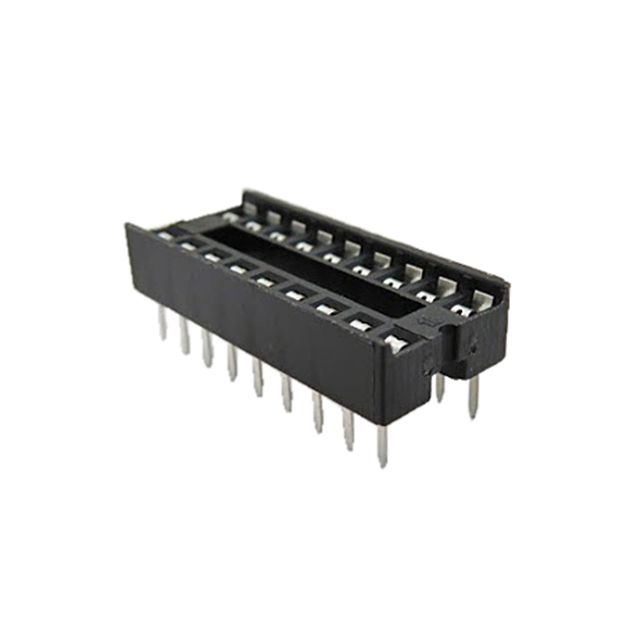

ICS-318-T

Active

Adam Tech

18P DIP TIN PHOSPHOR BRONZE -55℃~+105℃ 2.54MM PLUGIN IC / TRANSISTOR SOCKET ROHS

Search across all available documentation for this part.

Active

Adam Tech

18P DIP TIN PHOSPHOR BRONZE -55℃~+105℃ 2.54MM PLUGIN IC / TRANSISTOR SOCKET ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	ICS-318-T

Contact Finish - Post	Tin
Contact Material - Mating	Phosphor Bronze
Contact Material - Post	Phosphor Bronze
Contact Resistance	20 mOhm
Current Rating (Amps)	1 A
Features	Open Frame
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	18
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	3.15 mm
Termination Post Length	0.124 in
Type	0.3 "
Type	7.62 mm
Type	DIP

Part	Material Flammability Rating	Contact Material - Post	Number of Positions or Pins (Grid)	Features	Type	Type	Type	Contact Resistance	Operating Temperature [Max]	Operating Temperature [Min]	Termination Post Length	Termination Post Length	Contact Material - Mating	Mounting Type	Pitch - Post	Pitch - Post	Housing Material	Pitch - Mating	Pitch - Mating	Termination	Contact Finish - Post	Current Rating (Amps)
Adam Tech ICS-318-T	UL94 V-0	Phosphor Bronze	18	Open Frame	0.3 "	7.62 mm	DIP	20 mOhm	105 ░C	-55 °C	3.15 mm	0.124 in	Phosphor Bronze	Through Hole	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT) Glass Filled	0.1 in	2.54 mm	Solder	Tin	1 A
Adam Tech ICS-316-T	UL94 V-0	Phosphor Bronze	16	Open Frame	0.3 "	7.62 mm	DIP	20 mOhm	105 ░C	-55 °C	3.15 mm	0.124 in	Phosphor Bronze	Through Hole	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT) Glass Filled	0.1 in	2.54 mm	Solder	Tin	1 A
Adam Tech ICS-308-T	UL94 V-0	Phosphor Bronze	8	Open Frame	0.3 "	7.62 mm	DIP	20 mOhm	105 ░C	-55 °C	3.15 mm	0.124 in	Phosphor Bronze	Through Hole	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT) Glass Filled	0.1 in	2.54 mm	Solder	Tin	1 A
