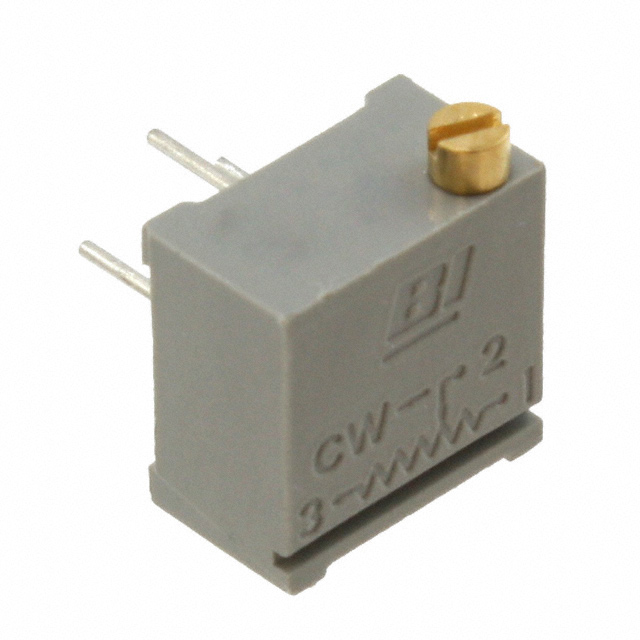

68PR10KLF

Active

TT Electronics/BI

TRIMMER 10K OHM 0.5W PC PIN SIDE

Search across all available documentation for this part.

Active

TT Electronics/BI

TRIMMER 10K OHM 0.5W PC PIN SIDE

Technical Specifications

Parameters and characteristics for this part

Part	Resistance	Power (Watts)	Power (Watts)	Adjustment Type	Tolerance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Number of Turns	Resistive Material	Temperature Coefficient	Mounting Type	Termination Style
TT Electronics/BI 68PR10KLF	10000 Ohms	0.5 W	0.5 W	Side Adjustment	10 %	0.375 in	0.375 in	9.53 mm	9.53 mm	20	Cermet	100 ppm/°C	Through Hole	PC Pins
TT Electronics/BI 68PR500KLF		0.5 W	0.5 W	Side Adjustment	10 %	0.245 in	0.375 in	9.53 mm	6.22 mm	20	Cermet	100 ppm/°C	Through Hole	PC Pins
TT Electronics/BI 68PR2KLFTB	2 kOhms	0.5 W	0.5 W	Side Adjustment	10 %	0.245 in	0.375 in	9.53 mm	6.22 mm	20	Cermet	100 ppm/°C	Through Hole	PC Pins
TT Electronics/BI 68PR2KLF	2 kOhms	0.5 W	0.5 W	Side Adjustment	10 %	0.245 in	0.375 in	9.53 mm	6.22 mm	20	Cermet	100 ppm/°C	Through Hole	PC Pins
TT Electronics/BI 68PR20KLF	20 kOhms	0.5 W	0.5 W	Side Adjustment	10 %	0.245 in	0.375 in	9.53 mm	6.22 mm	20	Cermet	100 ppm/°C	Through Hole	PC Pins
TT Electronics/BI 68PR25KLF	25 kOhms	0.5 W	0.5 W	Side Adjustment	10 %	0.245 in	0.375 in	9.53 mm	6.22 mm	20	Cermet	100 ppm/°C	Through Hole	PC Pins
TT Electronics/BI 68PR50LF	50 Ohms	0.5 W	0.5 W	Side Adjustment	20 %	0.245 in	0.375 in	9.53 mm	6.22 mm	20	Cermet	250 ppm/°C	Through Hole	PC Pins
TT Electronics/BI 68PR5KLFTB	5 kOhms	0.5 W	0.5 W	Side Adjustment	10 %	0.245 in	0.375 in	9.53 mm	6.22 mm	20	Cermet	100 ppm/°C	Through Hole	PC Pins

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 kOhms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 20.0 Turn Side Adjustment
