R180252007

Active

Radiall USA, Inc.

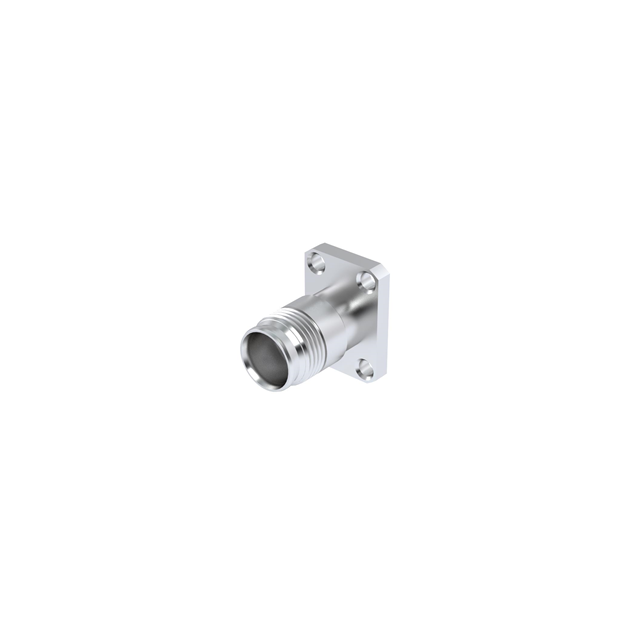

NEX10 F STR RECT SD.141 C50

Search across all available documentation for this part.

Active

Radiall USA, Inc.

NEX10 F STR RECT SD.141 C50

Technical Specifications

Parameters and characteristics for this part

Specification	R180252007

Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Silver
Connector Style	NEX10
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	20 GHz
Impedance	50 Ohms
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	500 V

Part	Center Contact Plating	Connector Type	Body Material	Dielectric Material	Impedance	Frequency - Max [Max]	Number of Ports	Mounting Feature	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Contact Termination	Shield Termination	Connector Style
Radiall USA, Inc. R180252007	Silver	Female Socket Jack	Brass	Polytetrafluoroethylene (PTFE)	50 Ohms	20 GHz	1	Flange	500 V	-55 °C	125 °C	Beryllium Copper	Solder	Solder	NEX10

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

NEX10 Connector Jack, Female Socket 50 Ohms Panel Mount Solder
