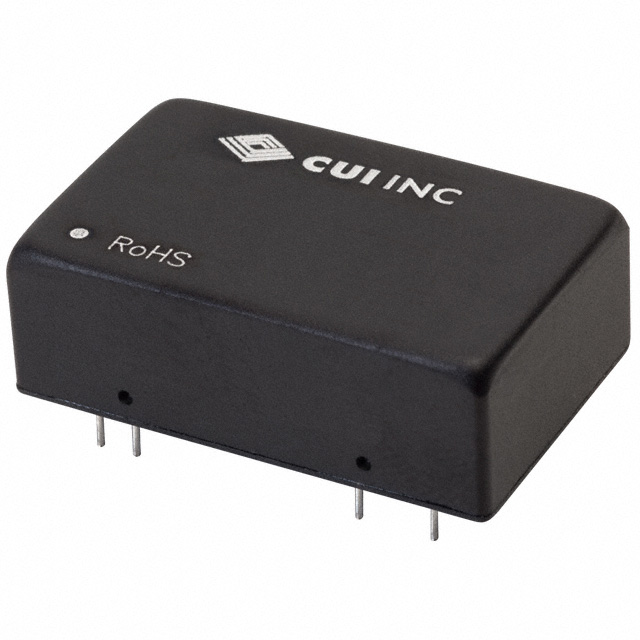

PUZ3-D48-S12-D
CUI Inc.
MODULE DC-DC 48VIN 1-OUT 12V 0.25A 3W 7-PIN DIP MODULE
Deep-Dive with AI
Search across all available documentation for this part.
PUZ3-D48-S12-D
CUI Inc.
MODULE DC-DC 48VIN 1-OUT 12V 0.25A 3W 7-PIN DIP MODULE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PUZ3-D48-S12-D |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 250 mA |
| Efficiency | 83 % |
| Features | OCP, SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 24-DIP Module, 8 Leads |
| Power (Watts) | 3 W |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 8.70 | |
| 15 | $ 11.39 | |||
Description
General part information
PUZ3-D48 Series
Isolated Module DC DC Converter 1 Output 12V 250mA 36V - 75V Input
