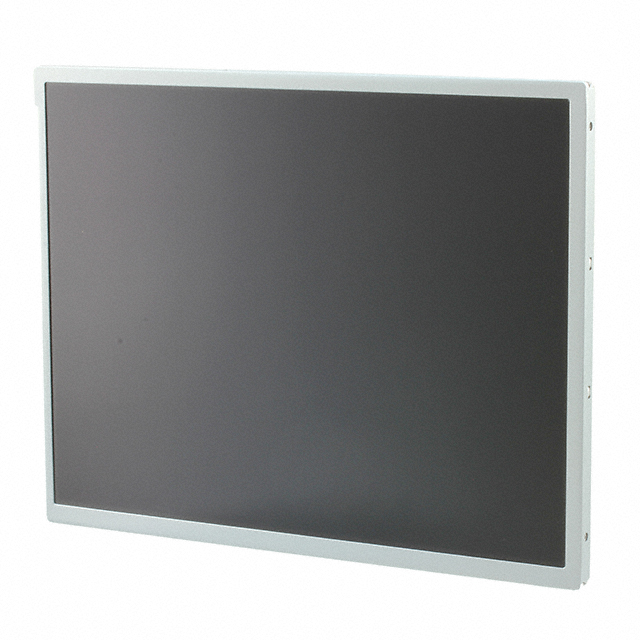

T-55788GD121J-LW-AHN

Kyocera International, Inc.

LCD TFT DISPLAY SVGA 12.1"

Search across all available documentation for this part.

Kyocera International, Inc.

LCD TFT DISPLAY SVGA 12.1"

Technical Specifications

Parameters and characteristics commom to parts in this series

LCD TFT 12.1" SVGA 600NITS

Part	Diagonal Screen Size	Diagonal Screen Size	Graphics Color	Dot Pitch [x]	Dot Pitch [y]	Display Type	Backlight	Interface	Display Mode	Viewing Area [y]	Viewing Area [x]
Kyocera International, Inc. T-55788GD121J-LW-AGN	12.1 in	307.34 mm	Blue, Green, Red	0.1 mm	0.31 mm	TFT - Color	LED - White	LVDS	Transmissive	184.5 mm	246 mm
Kyocera International, Inc. T-55788GD121J-LW-AHN	12.1 in	307.34 mm	Blue, Green, Red	0.1 mm	0.31 mm	TFT - Color	LED - White	LVDS	Transmissive	184.5 mm	246 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	20	$ 406.60

General part information

Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color LVDS 12.1" (307.34mm) 800 x 600 (SVGA)

Technical documentation and resources

No documents available
