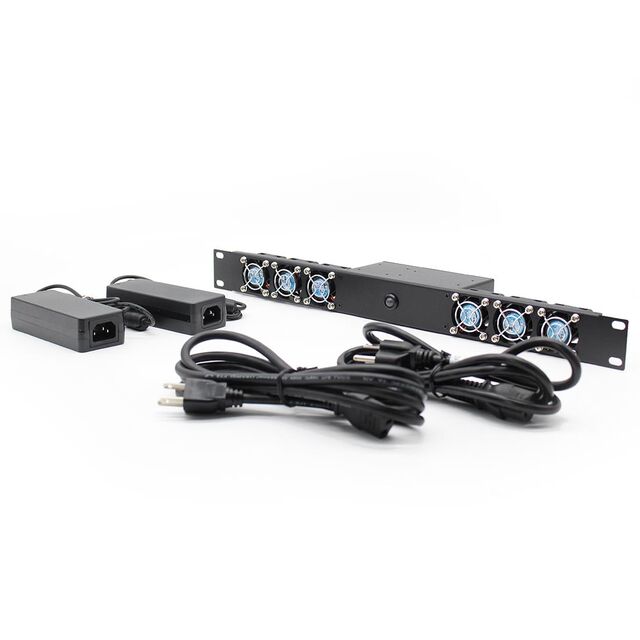

OAT615-DUAL
ActiveOrion Fans
19 X 3.08 IN, 1 RU FAN TRAY, HORIZONTAL AIRFLOW, 6 FANS, UNIVERSAL RANGE, DUAL POWER SUPPLIES, NEMA 5-15
Deep-Dive with AI
Search across all available documentation for this part.
OAT615-DUAL
ActiveOrion Fans
19 X 3.08 IN, 1 RU FAN TRAY, HORIZONTAL AIRFLOW, 6 FANS, UNIVERSAL RANGE, DUAL POWER SUPPLIES, NEMA 5-15
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | OAT615-DUAL |
|---|---|
| Size / Dimension [x] | 19 " |
| Size / Dimension [x] | 482.6 mm |
| Size / Dimension [y] | 3.08 in |
| Size / Dimension [y] | 78.2 mm |
| Size / Dimension [z] | 1.75 " |
| Size / Dimension [z] | 44.4 mm |
| Specifications | Fan Tray, DC |
| Specifications | 6 Heat Pipe, 160 CFM |
| Type | Fan Tray |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
OA406 Series
Rack Fan Tray, DC, 6 Fans, 160 CFM 19.00" L x 3.08" W x 1.75" H (482.6mm x 78.2mm x 44.4mm)
Documents
Technical documentation and resources
No documents available
