Q-2V0520005048I

Active

Amphenol Custom Cable

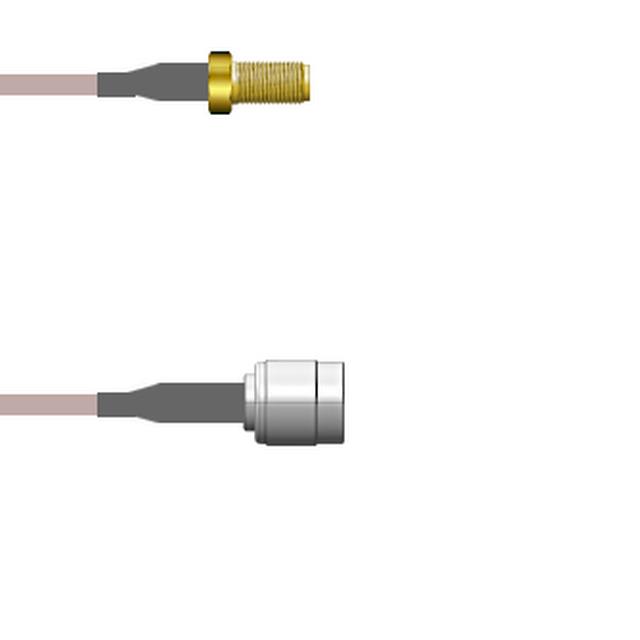

CBL ASSY SMA-TNC JACK-PLUG 4'

Search across all available documentation for this part.

Active

Amphenol Custom Cable

CBL ASSY SMA-TNC JACK-PLUG 4'

Technical Specifications

Parameters and characteristics for this part

Part	Overall Impedance	1st Contact Gender	Cable Type	Length	Length	Length	1st Connector Mounting Type	2nd Connector Mounting Type	2nd Connector	Color	Connector Impedance	Style	Cable Impedance	1st Connector	Frequency - Max [Max]	Features	2nd Contact Gender
Amphenol Custom Cable Q-2V0520005084I	50 Ohms	Female	RG-316	84 in	2.1 m	7 ft	Free Hanging (In-Line)	Free Hanging (In-Line)	TNC Plug	Copper	50 Ohms	SMA to TNC	50 Ohms	SMA Jack	3 GHz	Shielded	Male
Amphenol Custom Cable Q-2V05200051.5M	50 Ohms	Female	RG-316	59.1 in	1.5 m	4.9 ft	Free Hanging (In-Line)	Free Hanging (In-Line)	TNC Plug	Copper	50 Ohms	SMA to TNC	50 Ohms	SMA Jack	3 GHz	Shielded	Male
Amphenol Custom Cable Q-2V0520005048I	50 Ohms	Female	RG-316	48 in	1200 mm	4 ft	Free Hanging (In-Line)	Free Hanging (In-Line)	TNC Plug	Copper	50 Ohms	SMA to TNC	50 Ohms	SMA Jack	3 GHz	Shielded	Male

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMA to TNC RG-316 48.0" (1.2m) 4.0'

Technical documentation and resources

No documents available
