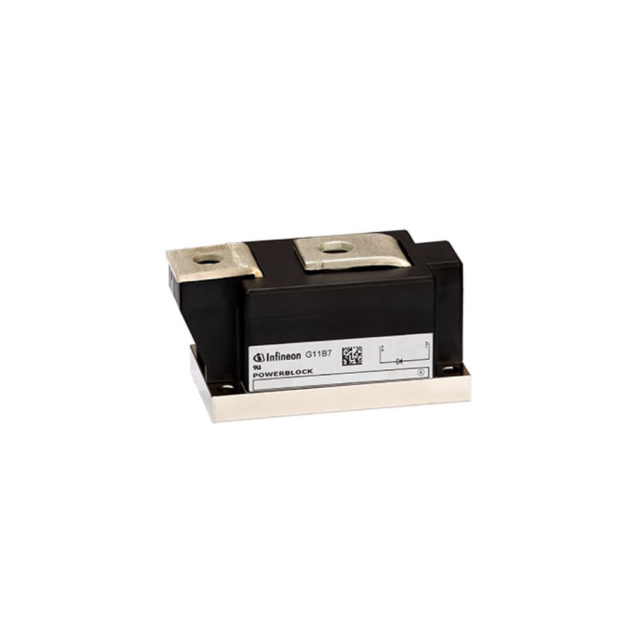

DZ435N36KHPSA1

Active

Infineon Technologies

3600 V, 435 A POWER BLOCK 50 MM SINGLE RECTIFIER DIODE MODULES

Search across all available documentation for this part.

Active

Infineon Technologies

3600 V, 435 A POWER BLOCK 50 MM SINGLE RECTIFIER DIODE MODULES

Technical Specifications

Parameters and characteristics for this part

Specification	DZ435N36KHPSA1

Current - Average Rectified (Io)	700 A
Current - Reverse Leakage @ Vr	50 mA
Mounting Type	Chassis Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-40 °C
Package / Case	Module
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	Module
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	3600 V
Voltage - Forward (Vf) (Max) @ If	1.71 V

Part	Current - Reverse Leakage @ Vr	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Technology	Speed	Speed	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If	Mounting Type	Package / Case	Supplier Device Package	Voltage - DC Reverse (Vr) (Max) [Max]
Infineon Technologies DZ435N36KHPSA1	50 mA	150 °C	-40 °C	Standard	Standard Recovery >500ns	200 mA	700 A	1.71 V	Chassis Mount	Module	Module	3600 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Single Rectifier Diode 50 mm Power Block 3600 V, 435 A module for phase control inpressure contact technologyusing an isolated copper base plate.
