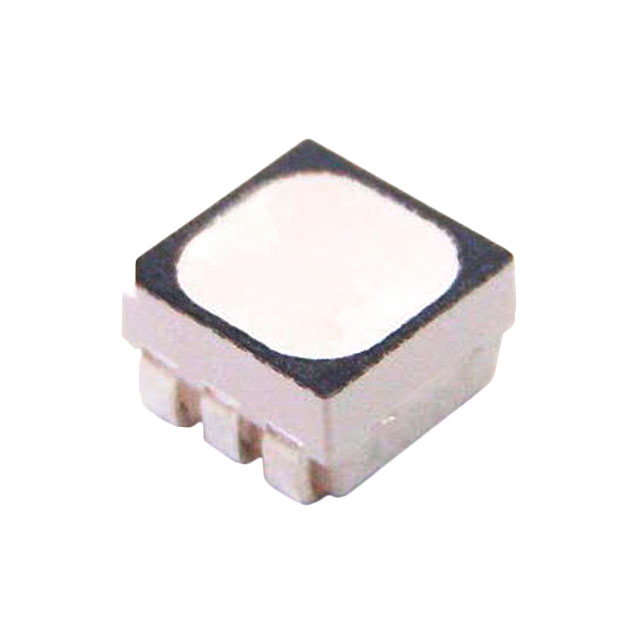

CLX6D-FKB-CN1R1H1BB7D3D3

Obsolete

Cree LED

LED RGB DIFFUSED 6PLCC SMD

Search across all available documentation for this part.

Obsolete

Cree LED

LED RGB DIFFUSED 6PLCC SMD

Technical Specifications

Parameters and characteristics for this part

Specification	CLX6D-FKB-CN1R1H1BB7D3D3

Color	Red, Green, Blue
Configuration	Independent
Current - Test [custom]	20 mA
Current - Test [custom]	20 mA
Current - Test [custom]	20 mA
Height (Max) [Max]	2.9 mm
Lens Color	White
Lens Size	1 mm
Lens Style	Square with Flat Top
Lens Transparency	Diffused
Millicandela Rating [custom]	1150 mcd
Millicandela Rating [custom]	2300 mcd
Millicandela Rating [custom]	533 mcd
Mounting Type	Surface Mount
Package / Case	6-SMD, J-Lead
Size / Dimension [x]	3.4 mm
Size / Dimension [y]	3.4 mm
Supplier Device Package	6-PLCC
Voltage - Forward (Vf) (Typ) [custom]	2.1 V
Voltage - Forward (Vf) (Typ) [custom]	3.2 V
Voltage - Forward (Vf) (Typ) [custom]	3 V
Wavelength - Dominant	622 nm, 530 nm, 470 nm

LED RGB DIFFUSED 6PLCC SMD

Part	Supplier Device Package	Lens Style	Height (Max) [Max]	Wavelength - Dominant	Mounting Type	Lens Color	Configuration	Lens Size	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Lens Transparency	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Color
Cree LED CLX6D-FKB-CN1R1H1BB7D3D3	6-PLCC	Square with Flat Top	2.9 mm	470 nm, 530 nm, 622 nm	Surface Mount	White	Independent	1 mm	6-SMD, J-Lead	3.4 mm	3.4 mm	Diffused	20 mA	20 mA	20 mA	1150 mcd	2300 mcd	533 mcd	2.1 V	3.2 V	3 V	Blue, Green, Red

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Red, Green, Blue (RGB) 622nm Red, 530nm Green, 470nm Blue LED Indication - Discrete 2.1V Red, 3V Green, 3.2V Blue 6-SMD, J-Lead
