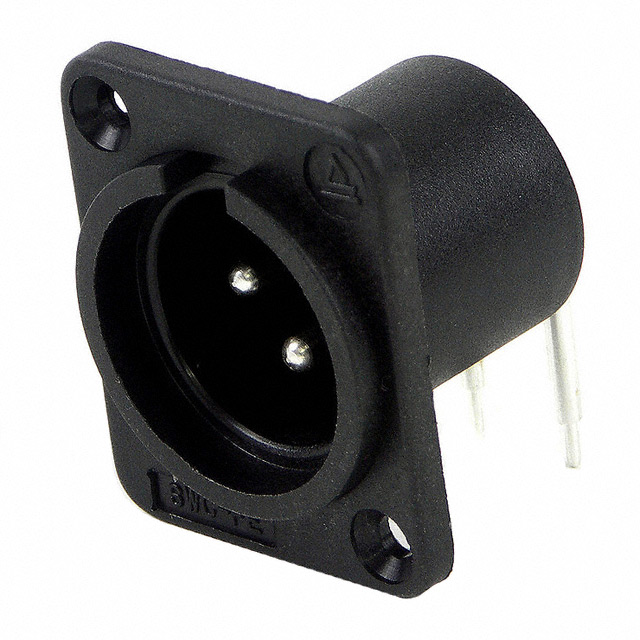

PD3MRML1
ActiveSwitchcraft Inc.
CONN RCPT MALE XLR 3P SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PD3MRML1
ActiveSwitchcraft Inc.
CONN RCPT MALE XLR 3P SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PD3MRML1 | PD3MRM Series |
|---|---|---|
| Applications | Audio | Audio |
| Color | Black | Black |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins |
| Contact Finish - Mating | Silver | Silver |
| Contact Material | Brass | Brass |
| Fastening Type | Push-Pull | Push-Pull |
| Features | Ground | Ground |
| Insert Material | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Flange | Flange |
| Mounting Type | Through Hole, Right Angle, Panel Mount | Through Hole, Right Angle, Panel Mount |
| Primary Material | Plastic | Plastic |
| Shell Material | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 |
| Shell Size - Insert | XLR | XLR |
| Termination | Solder | Solder |
PD3MRM Series
CONN RCPT MALE XLR 3P SOLDER
| Part | Contact Finish - Mating | Mounting Type | Shell Material | Applications | Features | Insert Material | Material Flammability Rating | Fastening Type | Mounting Feature | Primary Material | Contact Material | Connector Type | Termination | Color | Shell Size - Insert |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. PD3MRMS1 | Silver | Panel Mount, Right Angle, Through Hole | Polyamide (PA66), Nylon 6/6 | Audio | Ground | Polyamide (PA66), Nylon 6/6 | UL94 V-0 | Push-Pull | Flange | Plastic | Brass | Male Pins, Receptacle | Solder | Black | XLR |
Switchcraft Inc. PD3MRMS2 | Silver | Panel Mount, Right Angle, Through Hole | Polyamide (PA66), Nylon 6/6 | Audio | Ground | Polyamide (PA66), Nylon 6/6 | UL94 V-0 | Push-Pull | Flange | Plastic | Brass | Male Pins, Receptacle | Solder | Black | XLR |
Switchcraft Inc. PD3MRML1 | Silver | Panel Mount, Right Angle, Through Hole | Polyamide (PA66), Nylon 6/6 | Audio | Ground | Polyamide (PA66), Nylon 6/6 | UL94 V-0 | Push-Pull | Flange | Plastic | Brass | Male Pins, Receptacle | Solder | Black | XLR |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PD3MRM Series
3 Position Circular Connector Receptacle, Male Pins Solder
