PD3MRMS2

Active

Switchcraft Inc.

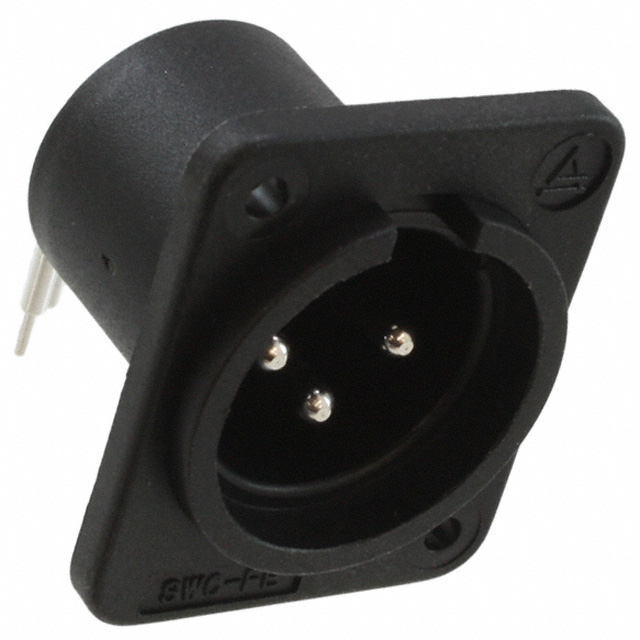

CONN RCPT MALE XLR 3P SILV SLDR

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT MALE XLR 3P SILV SLDR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

3 Position Circular Connector Receptacle, Male Pins Solder

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	PD3MRMS2	PD3MRM Series

Applications	Audio	Audio
Color	Black	Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Silver	Silver
Contact Material	Brass	Brass
Fastening Type	Push-Pull	Push-Pull
Features	Ground	Ground
Insert Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Flange	Flange
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Right Angle, Panel Mount
Primary Material	Plastic	Plastic
Shell Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Shell Size - Insert	XLR	XLR
Termination	Solder	Solder

CONN RCPT MALE XLR 3P SOLDER

Part	Contact Finish - Mating	Mounting Type	Shell Material	Applications	Features	Insert Material	Material Flammability Rating	Fastening Type	Mounting Feature	Primary Material	Contact Material	Connector Type	Termination	Color	Shell Size - Insert
Switchcraft Inc. PD3MRMS1	Silver	Panel Mount, Right Angle, Through Hole	Polyamide (PA66), Nylon 6/6	Audio	Ground	Polyamide (PA66), Nylon 6/6	UL94 V-0	Push-Pull	Flange	Plastic	Brass	Male Pins, Receptacle	Solder	Black	XLR
Switchcraft Inc. PD3MRMS2	Silver	Panel Mount, Right Angle, Through Hole	Polyamide (PA66), Nylon 6/6	Audio	Ground	Polyamide (PA66), Nylon 6/6	UL94 V-0	Push-Pull	Flange	Plastic	Brass	Male Pins, Receptacle	Solder	Black	XLR
Switchcraft Inc. PD3MRML1	Silver	Panel Mount, Right Angle, Through Hole	Polyamide (PA66), Nylon 6/6	Audio	Ground	Polyamide (PA66), Nylon 6/6	UL94 V-0	Push-Pull	Flange	Plastic	Brass	Male Pins, Receptacle	Solder	Black	XLR
