3352N-A-60

Active

Pomona Electronics

TEST LEAD GATOR TO WECO 310 60"

Search across all available documentation for this part.

Active

Pomona Electronics

TEST LEAD GATOR TO WECO 310 60"

Technical Specifications

Parameters and characteristics for this part

Specification	3352N-A-60

2nd Connector	WECO 310 (PJ-051) Phone Plug
Cable Length	1524 mm
Cable Length	5 ft
Configuration	Alligator to Phone Plug
Contents	Red Plug, Black and Red Leads, 1 Cable, Gray
Current Rating (Amps)	5 A
Material - Insulation	Poly-Vinyl Chloride (PVC)
Temperature Range	50 °C
Temperature Range	122 °F
Voltage - Rated	DC
Voltage - Rated	150 VAC
Wire Gauge	18 AWG, 20 AWG

Part	Voltage - Rated	Voltage - Rated	Material - Insulation	Contents	Temperature Range	Temperature Range	Current Rating (Amps)	Cable Length	Cable Length	Configuration	2nd Connector	Wire Gauge
Pomona Electronics 3352N-A-60	DC	150 VAC	Poly-Vinyl Chloride (PVC)	1 Cable Black and Red Leads Gray Red Plug	50 °C	122 °F	5 A	1524 mm	5 ft	Alligator to Phone Plug	WECO 310 (PJ-051) Phone Plug	18 AWG 20 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

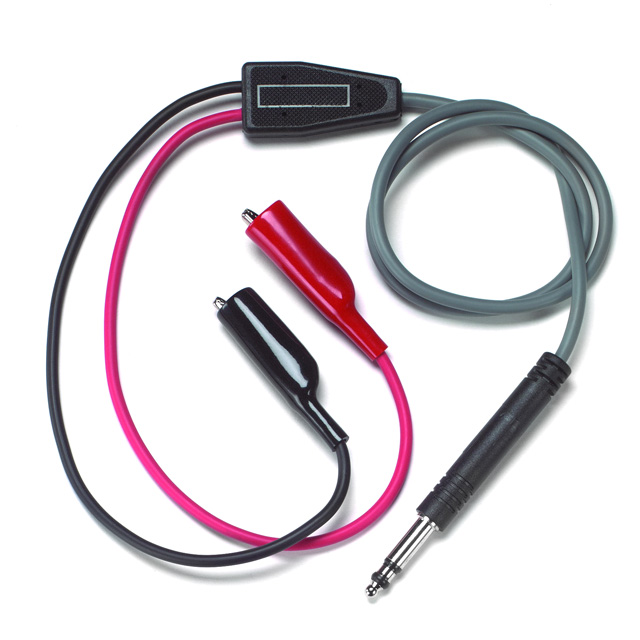

60.0" (1524.00mm) Alligator Clip, Insulated (2) To WECO 310 (PJ-051) Phone Plug Test Lead 150VAC, DC 1 Cable, Gray, Black and Red Leads, Red Plug
