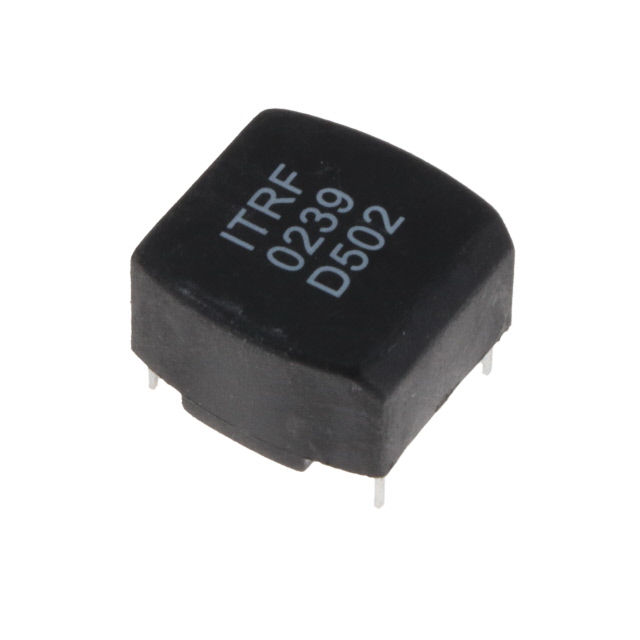

ITRF-0239-D502

Active

SCHURTER Inc.

ITRF PULSE TRANSFORMER THT 0.5A

Search across all available documentation for this part.

Active

SCHURTER Inc.

ITRF PULSE TRANSFORMER THT 0.5A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1.6mH SCR and Triac Trigger (Encapsulated) Pulse Transformer 1:1:1 Through Hole

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	ITRF-0239-D502	ITRF Series

ET (Volt-Time)	350 VµS	150 - 350 VµS
Height - Seated (Max)	-	10.6 - 13 mm
Height - Seated (Max)	-	0.417 - 0.512 "
Inductance	1.6 mH	1.2 - 1.6 mH
Mounting Type	Through Hole	Through Hole
Operating Temperature [custom]	100 °C, -25 °C	-25 - 100 °C
Size / Dimension [x]	0.878 in	0.512 - 0.878 in
Size / Dimension [x]	22.3 mm	0.701 - 22.3 in
Size / Dimension [y]	0.894 in	0.598 - 0.894 in
Size / Dimension [y]	22.7 mm	0.717 - 22.7 mm
Transformer Type	SCR and Triac Trigger (Encapsulated)	Isolation and Data Interface (Encapsulated), SCR and Triac Trigger (Encapsulated)
Turns Ratio - Primary:Secondary [custom]	1	1
Turns Ratio - Primary:Secondary [custom]	1	1
Turns Ratio - Primary:Secondary [custom]	1	1
Weight	9.97 g	8.22 - 9.97 g
Weight	0.352 oz	0.29 - 0.352 oz

ITRF PULSE TRANSFORMER THT 0.1A

Part	Weight	Weight	Size / Dimension [x]	Size / Dimension [y]	Inductance	Transformer Type	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [custom]	Turns Ratio - Primary:Secondary [custom]	Turns Ratio - Primary:Secondary [custom]	Turns Ratio - Primary:Secondary [custom]	Size / Dimension [x]	Size / Dimension [y]	ET (Volt-Time)
SCHURTER Inc. ITRF-0249-D101	9.12 g	0.32 oz	0.701 in, 17.8 mm	0.717 in, 18.2 mm	1.2 mH	Isolation and Data Interface (Encapsulated)	Through Hole	13 mm	0.512 "	-25 °C, 100 °C	1	1	1
SCHURTER Inc. ITRF-0239-D502	9.97 g	0.352 oz	22.3 mm	22.7 mm	1.6 mH	SCR and Triac Trigger (Encapsulated)	Through Hole			-25 °C, 100 °C	1	1	1	0.878 in	0.894 in	350 VµS
