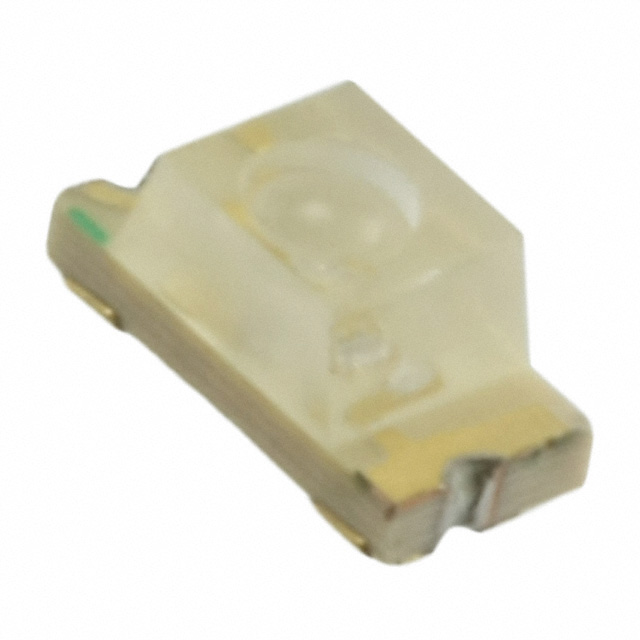

APL3015QBC/D-F01
ActiveKingbright
LED BLUE CLEAR CHIP SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
APL3015QBC/D-F01
ActiveKingbright
LED BLUE CLEAR CHIP SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | APL3015QBC/D-F01 |
|---|---|
| Color | Blue |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 1.4 mm |
| Lens Color | Colorless |
| Lens Size [diameter] | 0.18 mm |
| Lens Transparency | Clear |
| Millicandela Rating | 200 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, No Lead |
| Size / Dimension [x] | 3 mm |
| Size / Dimension [y] | 1.5 mm |
| Supplier Device Package | Chip LED |
| Viewing Angle | 70 ° |
| Voltage - Forward (Vf) (Typ) | 3.3 V |
| Wavelength - Dominant | 465 nm |
| Wavelength - Peak | 460 nm |
APL3015 Series
| Part | Size / Dimension [y] | Size / Dimension [x] | Lens Size [diameter] | Lens Transparency | Voltage - Forward (Vf) (Typ) | Package / Case | Lens Color | Wavelength - Peak | Configuration | Color | Mounting Type | Millicandela Rating | Wavelength - Dominant | Height (Max) [Max] [z] | Current - Test | Supplier Device Package | Viewing Angle | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Kingbright | 1.5 mm | 3 mm | 0.18 mm | Clear | 2 V | 2-SMD No Lead | Colorless | 590 nm | Standard | Yellow | Surface Mount | 350 mcd | 590 nm | 1.4 mm | 20 mA | Chip LED | 70 ° | |
Kingbright | 1.5 mm | 3 mm | 0.18 mm | Clear | 2.1 V | 2-SMD No Lead | Colorless | Standard | Green | Surface Mount | 120 mcd | 570 nm | 1.4 mm | 20 mA | Chip LED | 70 ° | ||
Kingbright | 1.5 mm | 3 mm | 0.18 mm | Clear | 2.2 V | 2-SMD No Lead | Colorless | 565 nm | Standard | Green | Surface Mount | 18 mcd | 568 nm | 1.4 mm | 20 mA | Chip LED | 70 ° | |
Kingbright | 1.5 mm | 3 mm | 0.18 mm | Clear | 2.1 V | 2-SMD No Lead | Colorless | Standard | Green | Surface Mount | 180 mcd | 570 nm | 1.4 mm | 20 mA | Chip LED | 70 ° | ||
Kingbright | 1.5 mm | 3 mm | 0.18 mm | Clear | 2.1 V | 2-SMD No Lead | Colorless | 610 nm | Standard | Surface Mount | 350 mcd | 601 nm | 1.4 mm | 20 mA | Chip LED | 70 ° | ||
Kingbright | 1.5 mm | 3 mm | 0.18 mm | Clear | 2 V | 2-SMD No Lead | Colorless | 627 nm | Standard | Red | Surface Mount | 12 mcd | 617 nm | 1.4 mm | 20 mA | Chip LED | 70 ° | |
Kingbright | 1.5 mm | 3 mm | 0.18 mm | Clear | 3.3 V | 2-SMD No Lead | Colorless | 460 nm | Standard | Blue | Surface Mount | 200 mcd | 465 nm | 1.4 mm | 20 mA | Chip LED | 70 ° | |
Kingbright | 1.5 mm | 3 mm | Clear | 1.85 V | 2-SMD No Lead | Colorless | 655 nm | Standard | Red | Surface Mount | 50 mcd | 640 nm | 1.4 mm | 20 mA | Chip LED | 70 ° | ||
Kingbright | 1.5 mm | 3 mm | Clear | 3.3 V | Colorless | 515 nm | Independent | Green | Surface Mount | 700 mcd | 525 nm | 1.6 mm | 20 mA | 2-SMD | 70 ° | 1206 3014 Metric | ||
Kingbright | 1.5 mm | 3 mm | 0.18 mm | Clear | 1.95 V | 2-SMD No Lead | Colorless | 645 nm | Standard | Red | Surface Mount | 180 mcd | 630 nm | 1.4 mm | 20 mA | Chip LED | 70 ° |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.33 | |
| 10 | $ 0.20 | |||
| 100 | $ 0.12 | |||
| 1000 | $ 0.09 | |||
| Digi-Reel® | 1 | $ 0.33 | ||
| 10 | $ 0.20 | |||
| 100 | $ 0.12 | |||
| 1000 | $ 0.09 | |||
| Tape & Reel (TR) | 2000 | $ 0.09 | ||
Description
General part information
APL3015 Series
Blue 465nm LED Indication - Discrete 3.3V 2-SMD, No Lead
